NR-OLS series
Description:

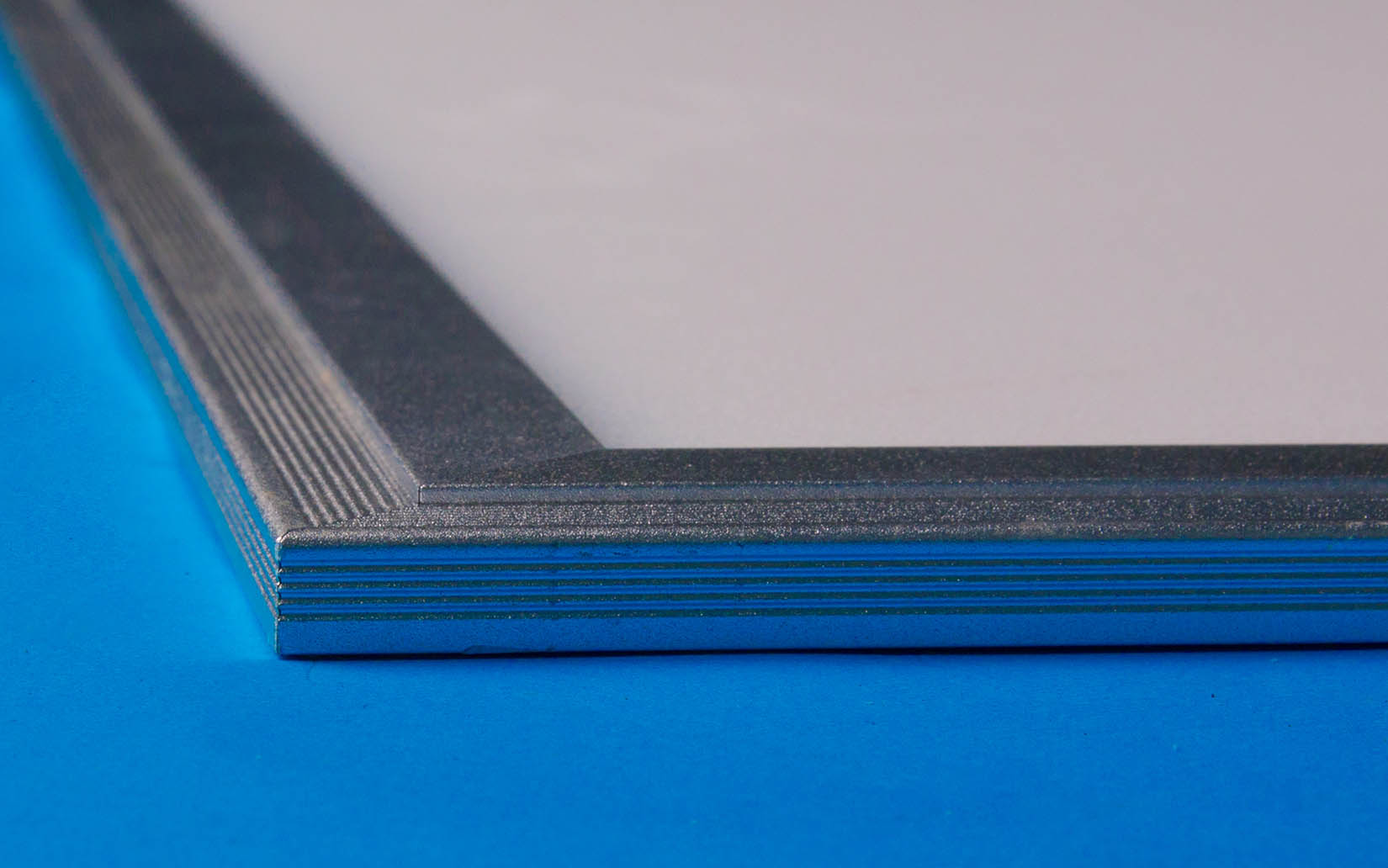

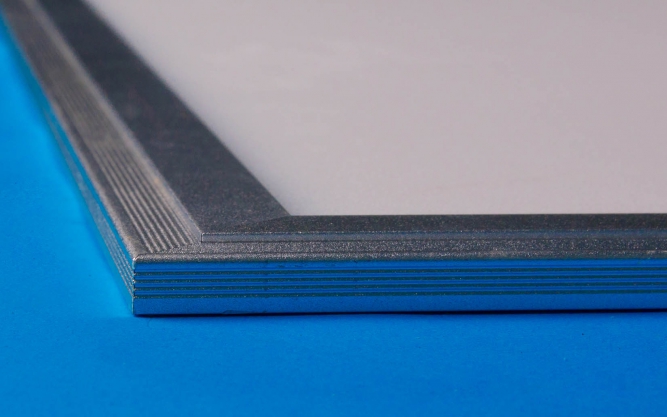

NR-OLS is an elegant and refined pro light with the smallest width (thinner than 10 mm), perfectly suitable for confined spaces under the ceiling.
Super thin OLS panel is easily installed and has a bright, even shining. The wide light flux opening angle and higher light output make it possible to install fewer lights in one room, compared to Armstrong lights. OLS can be equipped with stylish chrome cables.
A perfect solution for elite high-tech rooms.
A wide range of models with the power from 36 to 50 W.
Offices / Shopping areas / Corridors
Lighting features:
- Colour temperature
- 4000/5000 Ê
- Colour rendering index Ra
- >70

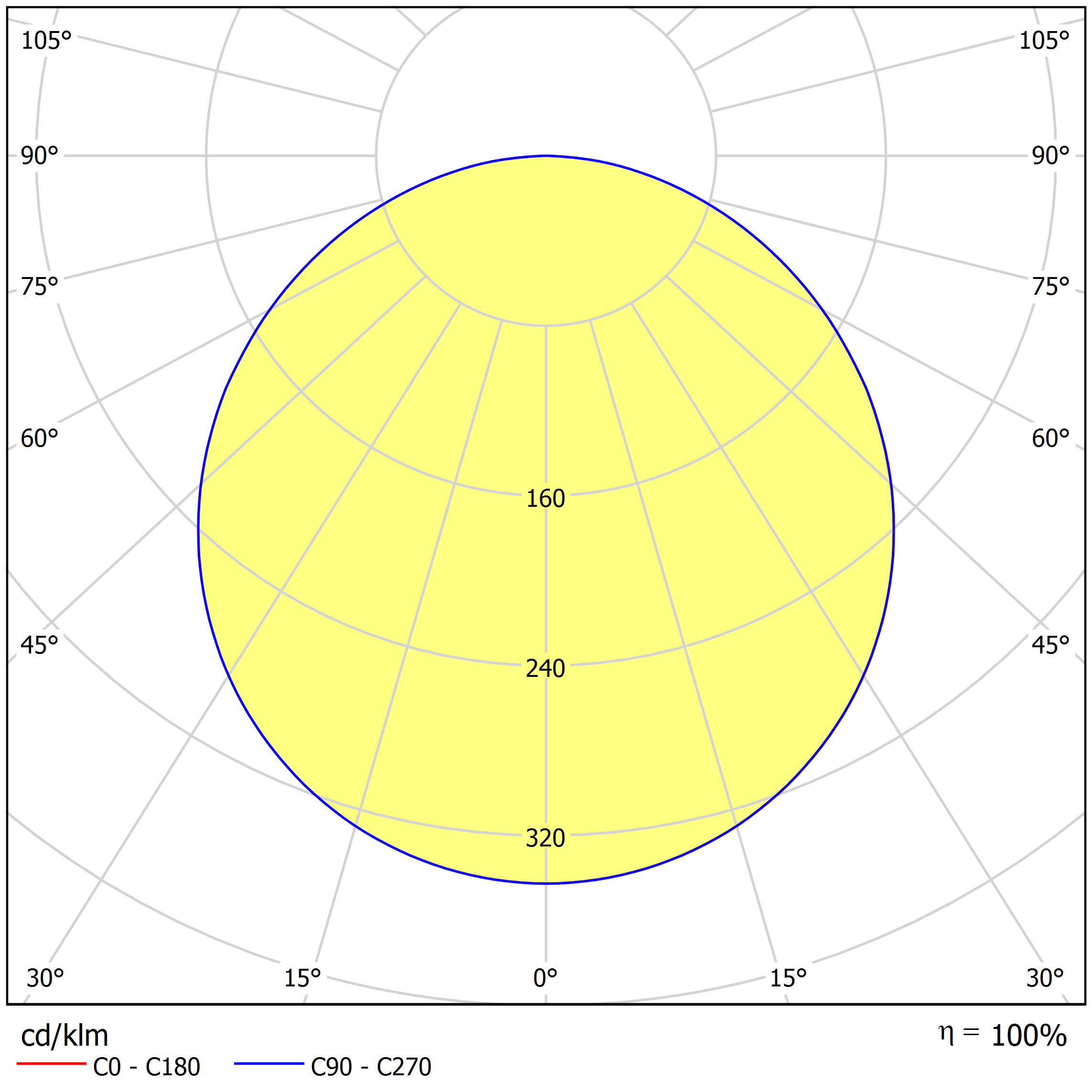

- Light flux opening angle
- 120°
- Light output
- up to 100 lm/W
Colour temperature (K) and CRI can be changed by the customer’s order.
Technical features:
- Useful light period:
- L80 = 30 000 hours / L70 = 40 000 hours
- Working temperatures range
- -20⁰ – +50⁰
- Protection degree
- IP40
- Power index
- >0,95
Electric features:
Mains electricity - 230 W
Supply frequency- 50-60 Hz
Electric current protection- I
Physical features:
- Case material
- anodized aluminum
- Optics material
- light-diffusing polycarbonate (polystyrene)
- Anchorage
- built-in light (equipped with ‘grigliato’ anchors)

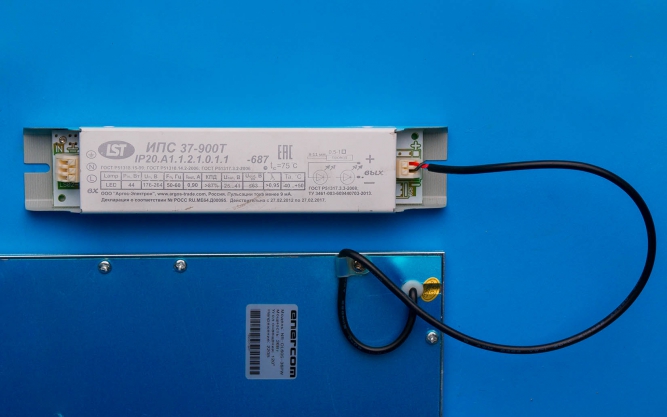

- Replaceable device driver
- Argos-Trade
| Model | Number of modules, item |
Light flux, Lm |
Consumption, W |
Overall dimensions, mm L õ W õ H |
Weight, kg |
|---|---|---|---|---|---|
| NR-OL60S-36 | 2 | 3450 / 3600 | 36 | 595 õ 595 õ 9 | 2,6 |
| NR-OL60S-50 | 2 | 4700 / 5000 | 50 | 595 õ 595 õ 9 | 2,6 |
