SLR Series
Description:

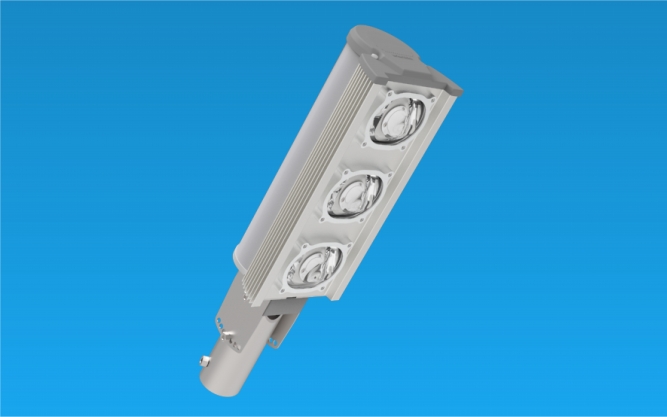

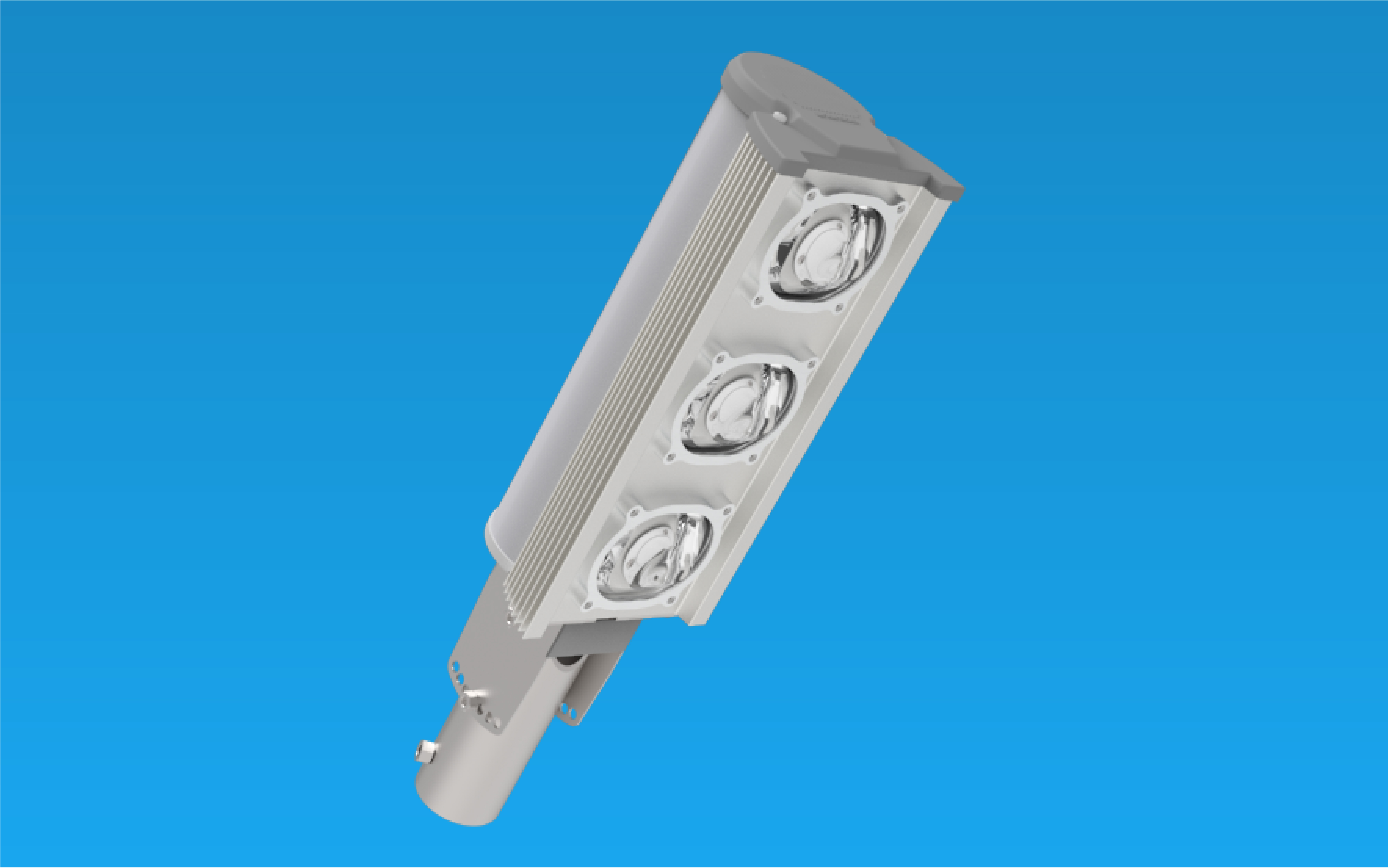

SLR is the series of LED street lighting fixtures. The luminaires are equipped with highly reliable optics made of borosilicate glass, the lamp housing is made of anodized aluminium and radiofrequency transparent ceramics.
The developed design prevents dust accumulation.
Adjustable single-sided support made of stainless steel with the tilt angle from 0 to 45 degrees.
Near-by territories
Lighting details:
- Colour temperature
- 4,000/5,000 K
- Colour rendering index Ra
- >70
- Light flux angle of expansion
- 145*70/150*80/160*60/140*60
- Light output
- from 137 lm/W
Colour temperature (K) and colour rendering index (Ra) may be changed upon customer’s request.
Technical data:
- Lamp useful life:
- L70 at ta=+25°C > 70,000 hours
- Operating temperature range
- from -45 to +50⁰
- Protection class
- IP66-IP67
- Power factor
- >0,95
Electrical data:
Line voltage - 90-305 AC / 127-300 DC
Power line frequency- 50 Hz
Electric shock protection class- I
Physical characteristics:
- Housing material
- Anodized aluminum, radiofrequency transparent ceramics
- Optics material
- Borosilicate glass
- Fasteners
- Single-sided support
| Model | Number of modules, pcs. |
Light flux, lm |
Power consumption, W |
Dimensions, mm L x W x H |
Weight, kg |
|---|---|---|---|---|---|
| SLR-50 | 1 | 5200-7400 | 33-50 | 445 õ 183 õ 161 | 4,9 |
| SLR-75 | 1 | 7600-10000 | 51-75 | 445 õ 183 õ 161 | 5,1 |
| SLR-100 | 2 | 12000-14700 | 76-96 | 445 õ 183 õ 161 | 5,5 |
| SLR-150 | 2 | 17000-20100 | 120-145 | 495 õ 183 õ 161 | 6,2 |
| SLR-150 | 3 | 18000-22200 | 115-145 | 625 õ 183 õ 161 | 8 |
| SLR-200 | 3 | 23000-27500 | 150-195 | 625 õ 183 õ 161 | 8,1 |
| SLR-240 | 3 | 25500-31600 | 180-235 | 625 õ 183 õ 161 | 8,3 |
| SLR-240 | 4 | 24000-34000 | 150-235 | 625 õ 183 õ 161 | 8,7 |
