NR-ORL series
Description:
NR-ORL light is adjustable to the customer’s needs by the following parameters: optics used, light efficiency (the number of LEDs used), service life (aluminum radiators).
ORL lights have fewer LEDs on the line than OLH. A professional celling light will be perfect in offices, corridors and support facilities, being used up to 16 hours/day.
A wide range of models with the power from 19 to 55 W.
Corridors / Offices / Support facilities
Lighting features:
- Colour temperature
- 4000/5000 Ê
- Colour rendering index Ra
- >80

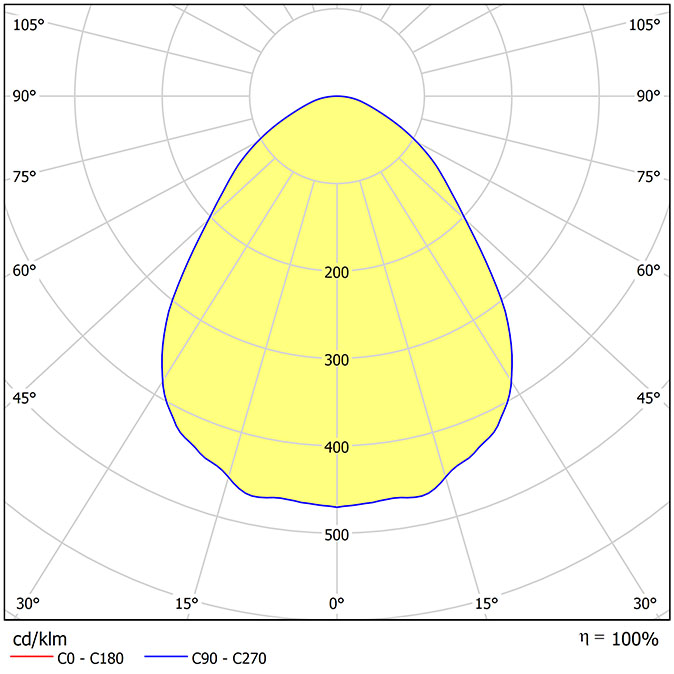

- Light flux opening angle
- 90°
- Light output
- up to 120 lm/W
Colour temperature (K) and CRI can be changed by the customer’s order.
Technical features:
- Useful light period:
- L80 = 35 000 hours / L70 = 50 000 hours
- Working temperatures range
- -40 – +50°
- Protection degree
- IP20
- Power index
- >0,95
Electric features:
Mains electricity - 230 W
Supply frequency- 50-60 Hz
Electric current protection- I
Physical features:
- Case material
- steel
- Optics material
- prism diffuser
- Anchorage
- built-in light / anchored light

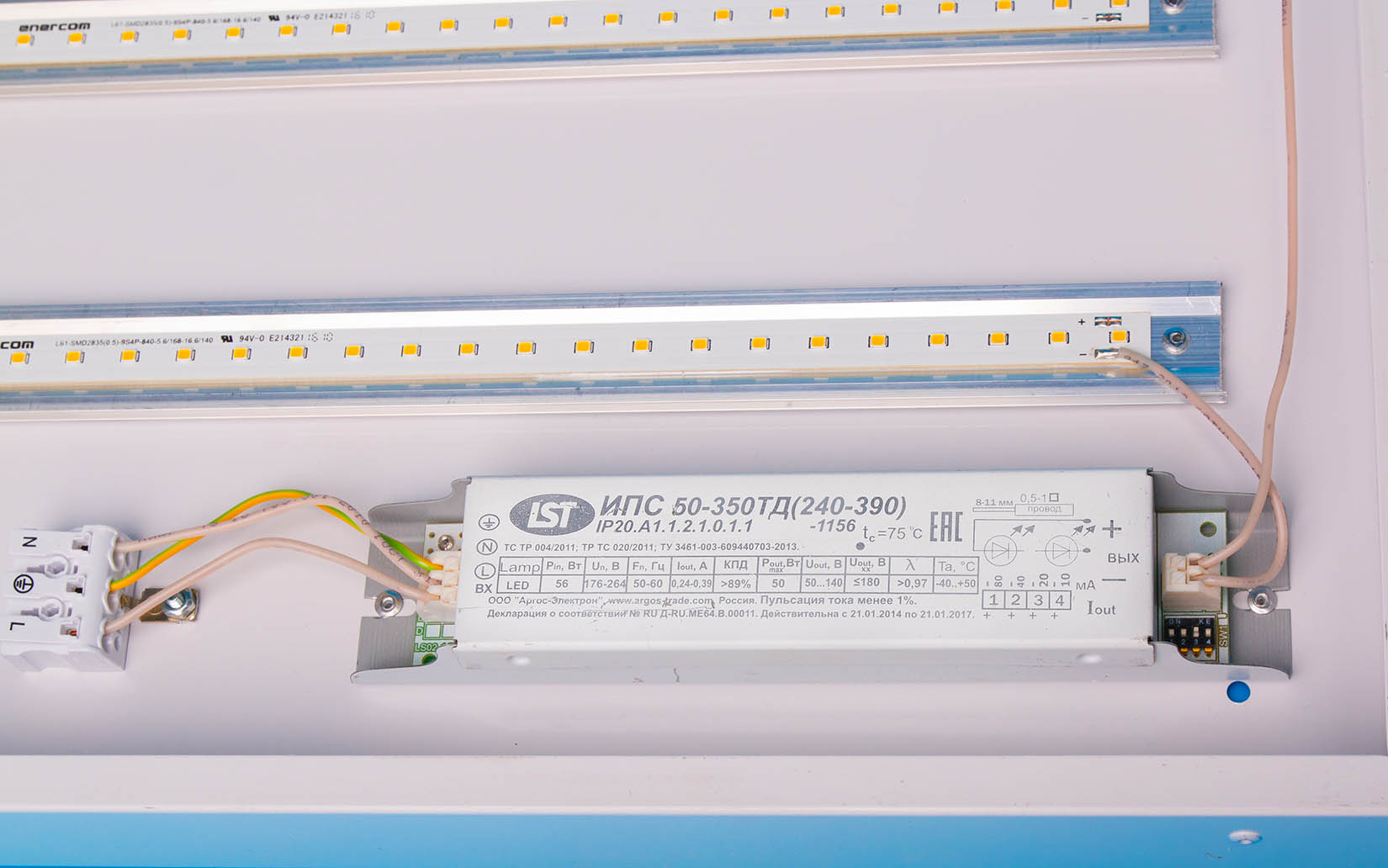

- Replaceable device driver
- Argos-Trade
| Model | Number of modules, item |
Light flux, Lm |
Consumption, W |
Overall dimensions, mm L õ W õ H |
Weight, kg |
|---|---|---|---|---|---|
| NR-OL60R3-27 | 3 | 2350 – 3150 / 2400 – 3200 | 19 – 27 | 595 õ 595 õ 40 | 3 |
| NR-OL60R3-31 | 3 | 3600 – 3700 / 3450 – 4250 | 31 | 595 õ 595 õ 40 | 3 |
| NR-OL60R3-36 | 3 | 3150 – 3950 / 3200 – 4050 | 27 – 36 | 595 õ 595 õ 40 | 3 |
| NR-OL60R4-45 | 4 | 3400 – 5300 / 3500 – 5400 | 27 – 45 | 595 õ 595 õ 40 | 3 |
| NR-OL60R5-55 | 5 | 4250 – 6450 / 4350 – 6600 | 34 – 55 | 595 õ 595 õ 40 | 3 |
