NR-MLJ Series
Description:

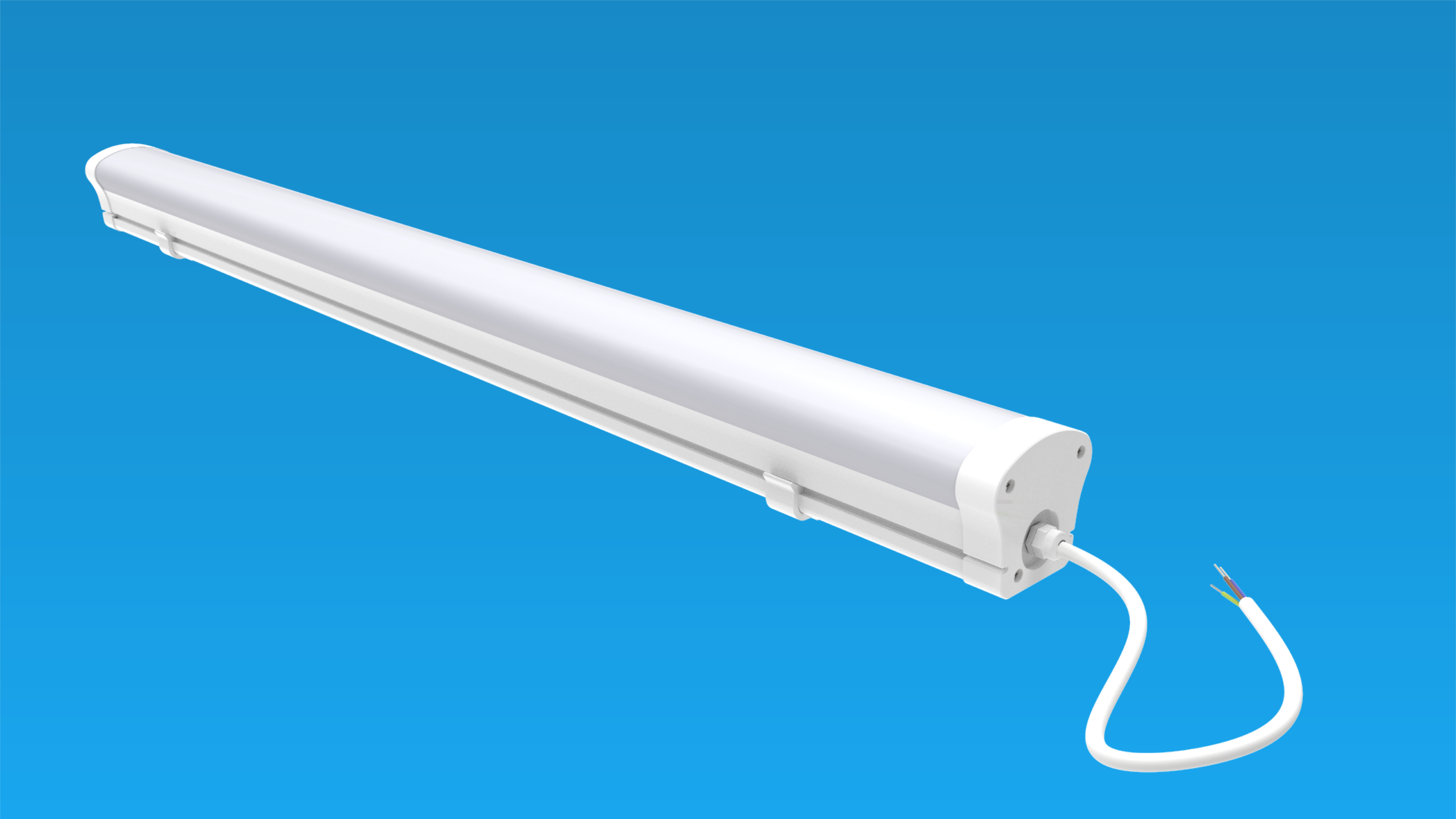

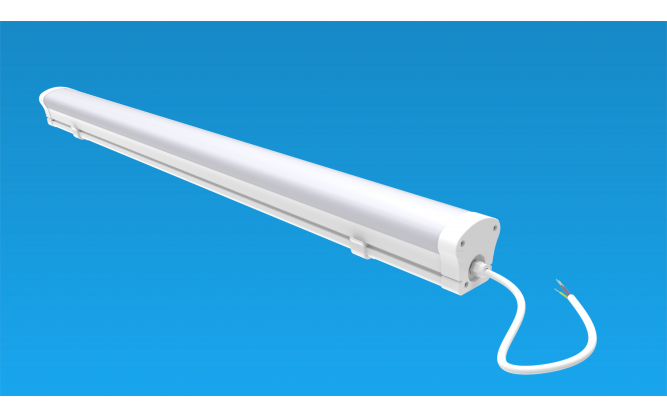

Specially protected LED fixtures of new NR-MLJ series are developed for premises with high humidity and aggressive environment.
The housing is made of extra high strength polycarbonate with the guaranteed service life of up to 10 years and IP68 protection class. For additional protection the driver is installed inside the sealed housing.
LED module is installed on the heater, which ensures an extended service life.
NR-MLJ is an extremely reliable solution for chemical, metallurgical and food production facilities.
Animal and poultry farming facilities / Aggressive environments / Manufacturing facilities / Automobile repair shops
Lighting details:
- Colour temperature
- 4,000/5,000 K
- Colour rendering index Ra
- >70
- Light flux angle of expansion
- 135°
- Light output
- from 115 lm/W
Technical data:
- The fixture useful life:
- L80 = 30,000 hours / L70 = 40,000 hours
- Operating temperature range
- from -40 to +50⁰
- Protection class
- IP65
- Power factor
- >0,95
Electrical data:
Line voltage - 230 V
Power line frequency- 50-60 Hz
Electric shock protection class- II
Physical characteristics:
- Housing material
- optical grade polycarbonate
- Optics material
- optical grade polycarbonate
- Fasteners
- clip
- Easy-to-replace driver
- Argos-Trade
| Model | Number of modules, pcs. |
Light flux: 4,000K / 5,000K, lm |
Power consumption, W |
Dimensions, mm L x W |
Weight, kg |
|---|---|---|---|---|---|
| NR-ML100JS-18 | 1 | 2350 / 2450 | 21 | 1000 õ 54 õ 54 | 1,1 |
| NR-ML100JS-24 | 2 | 2750 / 2860 | 27 | 1000 õ 54 õ 54 | 1,1 |
| NR-ML100JS-36 | 2 | 3850 / 4000 | 40 | 1000 õ 54 õ 54 | 1,1 |
| MLJ40-WB2000-L14F840-D12-K | 2 | 2000 | 14 | 410 x 76 x 76 | 1 |
| MLJ20-WB1000-L7F840-D12-K | 1 | 1000 | 7 | 210 x 76 x 76 | 0,7 |
| MLJ100-R4050-L36F840-DS-K | 4 | 4050 | 36 | 1040 x 76 x 76 | 1,3 |
