NR-ML series

Description:

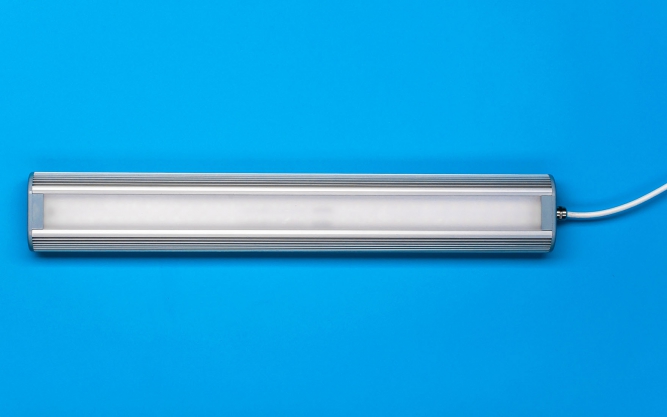

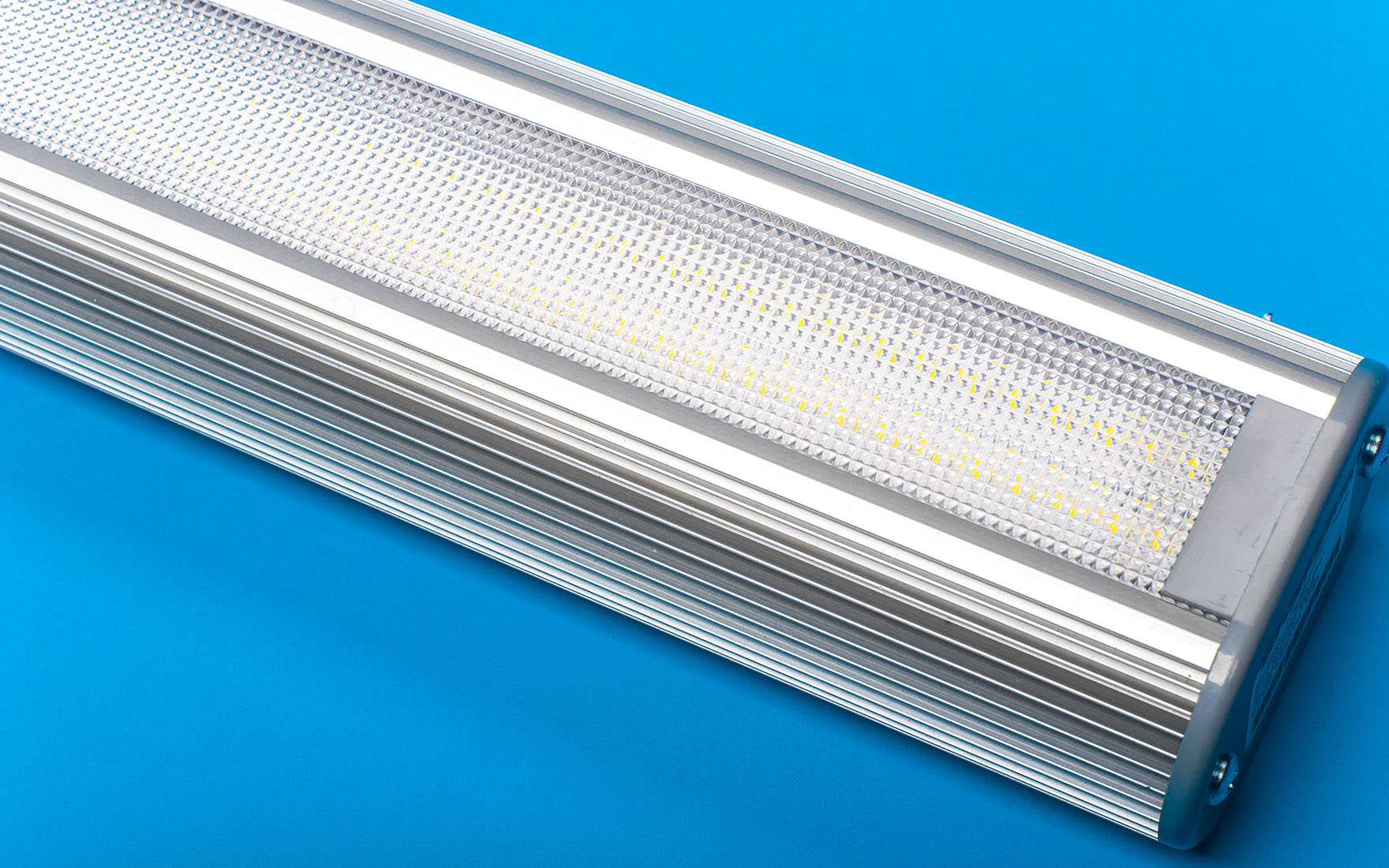

MRL SMD lights have considerable advantages compared to traditional gas-charge lights. Their convenient extended form is suitable for ‘line’ lighting, for example in a passage or corridor. It is a direct replacement of standard luminescent ceiling form-factor lights, saving up to 60 % of energy. The light flux can be adjusted with the highest pressure on the nominal. The lights set contains three diffusers: transparent, matt and microprism.

This is an optimal solution for 8-10 hours/day enterprises with a low energy rate.

A wide range of models with the power from 12 to 105 W.image description

  • image description
    •
  • image description
    •
  • image description
    •
  • image description
    •
  • image description
    •

Offices / Corridors / Shopping areas / Spaces between the racks / Manufacturing facilities

Lighting features:

Colour temperature image description
4000/5000 Ê
Colour rendering index Ra image description
>80

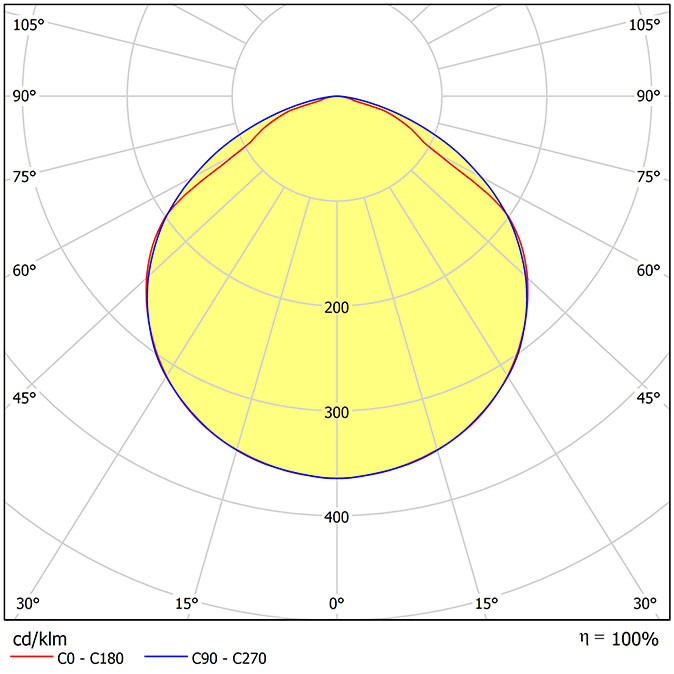

Light flux opening angle image description
120°
Light output image description
up to 125 lm/W
Colour temperature (K) and CRI can be changed by the customer’s order.

Technical features:

Useful light period: image description
L80 = 35 000 hours / L70 = 50 000 hours
Working temperatures range
-40 – +50°
Protection degree image description
IP65
Power index image description
>0,95

Electric features:

image descriptionMains electricity image description
230 W
image descriptionSupply frequency
50-60 Hz
image descriptionElectric current protection
I

Physical features:

Case material image description
anodized aluminum
Optics material image description
transparent polycarbonate (thickness = 1.5 mm)
Anchorage
stainless steel mounting bracket / anchor bolt
Replaceable device driver
Argos-Trade
Model Number of modules,
item		 Light flux,
Lm		 Consumption,
W		 Overall dimensions,
mm
L õ W õ H		 Weight, kg
NR-ML05R1E-22 1 1450-2250 / 1500-2300 12-22 510 õ 77 õ 49 1,4
NR-ML05R2E-24 2 2250-2850 / 2300-2900 18-24 510 õ 77 õ 49 1,4
NR-ML05R2E-34 2 2900-3850 / 2950 – 3900 24 - 34 510 õ 77 õ 49 1,4
NR-ML10R2E-24 2 2250 – 2850 / 2300 – 2900 18 - 24 1010 õ 77 õ 49 2
NR-ML10R2E-45 2 2900 – 4500 / 2950 – 4550 24 - 45 1010 õ 77 õ 49 2
NR-ML10R4E-62 4 5500 – 7200 / 5650 – 7350 44 - 62 1010 õ 77 õ 49 2
NR-ML15R3E-52 3 4350 – 5900 / 4450 – 6050 35 - 52 1510 õ 77 õ 49 3,5
NR-ML15R6E-62 6 5050 – 7700 / 5150 – 7850 38 – 62 1510 õ 77 õ 49 3,5
NR-ML15R6E-105 6 8650 – 11800 / 8850 – 12050 70 - 105 1510 õ 77 õ 49 3,5
