NR-AL series
Description:
NR-AL is a modern highly effective light for general lighting of continuously working household, public, utility and other objects.

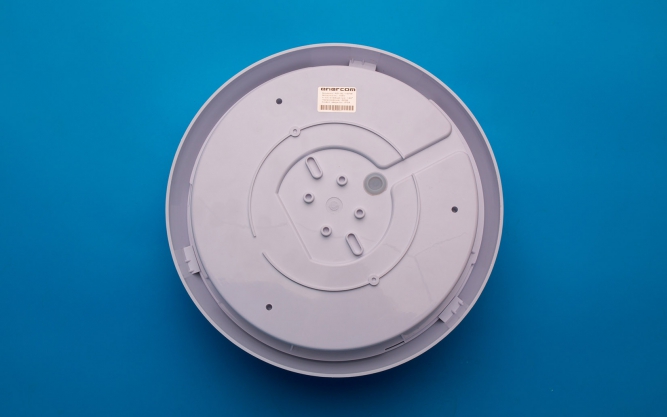

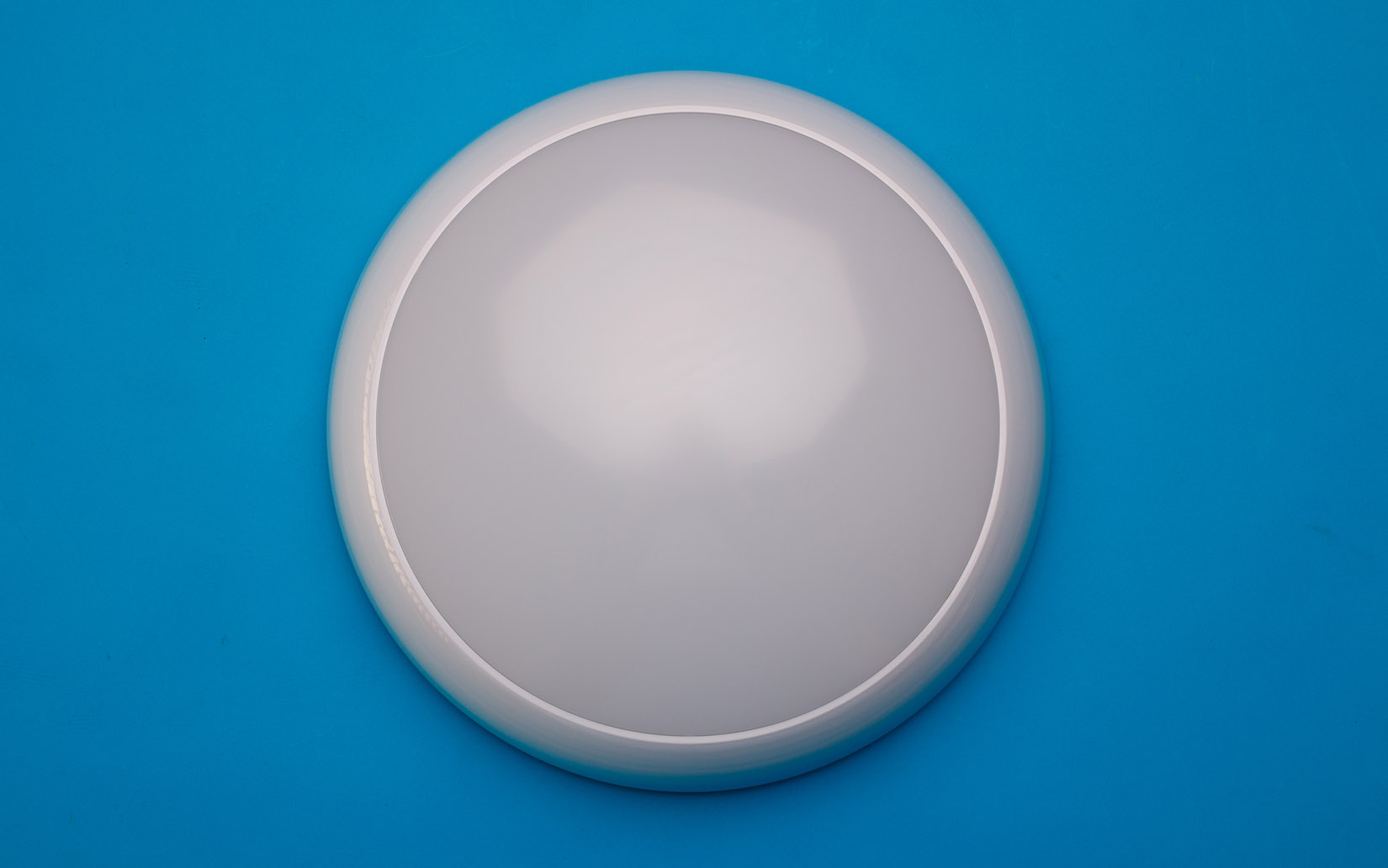

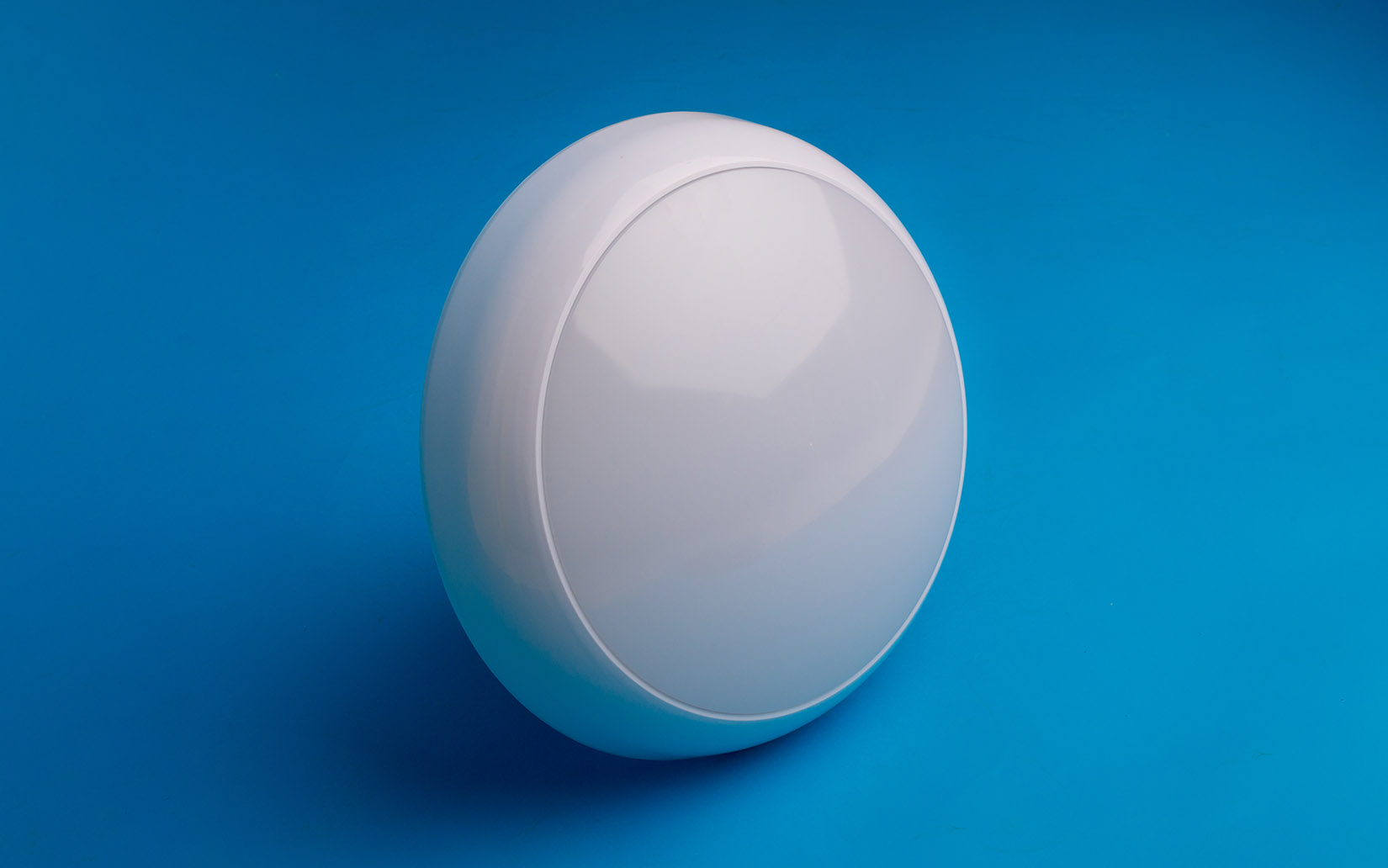

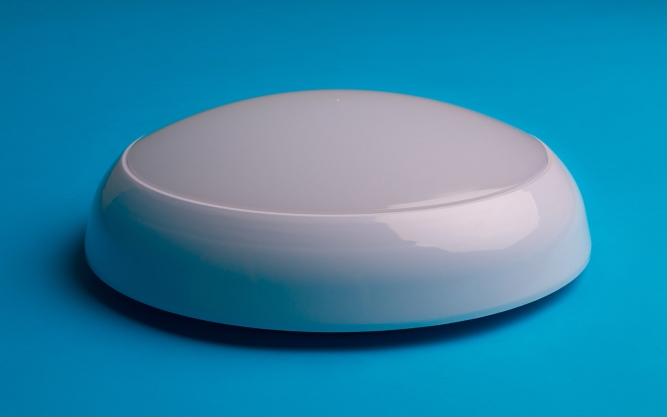

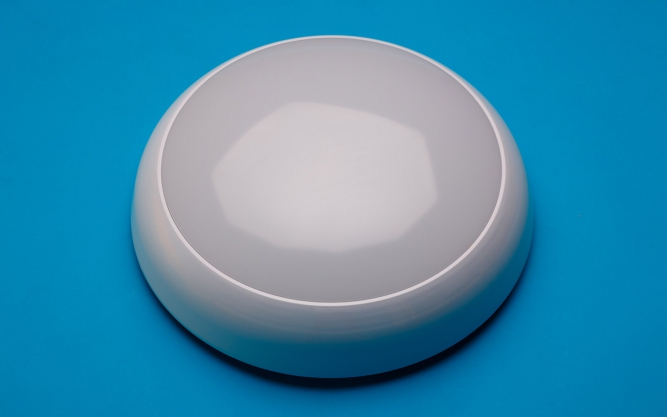

NR-AL light has a diffuser of hard opal polycarbonate, which provides reliable service even at the nastiest of weather. The model is equipped with comfortable anchorages, which allow the light to be fixed both vertically (on the wall) and horizontally (on the ceiling). The power cable is connected to the light through a specially designed technical entrance.
The NR-AL light can be equipped with a microwave motion sensor to create an efficient interactive lighting system.
Support facilities / Household lighting / Corridors / Emergency lighting
Lighting features:
- Colour temperature
- 4000/5000 К
- Colour rendering index Ra
- >80
- Light flux opening angle
- 120°
- Light output
- up to 100 lm/W
Technical features:
- Useful light period:
- L80 = 30 000 hours / L70 = 45 000 hours
- Working temperatures range
- -15 – +50⁰
- Protection degree
- IP54
- Power index
- >0,80
Electric features:
Mains electricity - 230 W
Supply frequency- 50-60 Hz
Electric current protection- I
Physical features:
- Case material
- shockproof thermostable plastic
- Optics material
- optical polycarbonate
- Anchorage
- screw fastening
| Model | Number of modules, item |
Light flux, Lm |
Consumption, W |
Overall dimensions, mm L х W х H |
Weight, kg | Sensor |
|---|---|---|---|---|---|---|
| NR-AL-15 | 1 | 1350 / 1400 | 15 | 300 х 100 | 0,9 | no |
| NR-AL-16 | 1 | 1350 / 1400 | 15,5 | 300 х 100 | 0,9 | yes |
