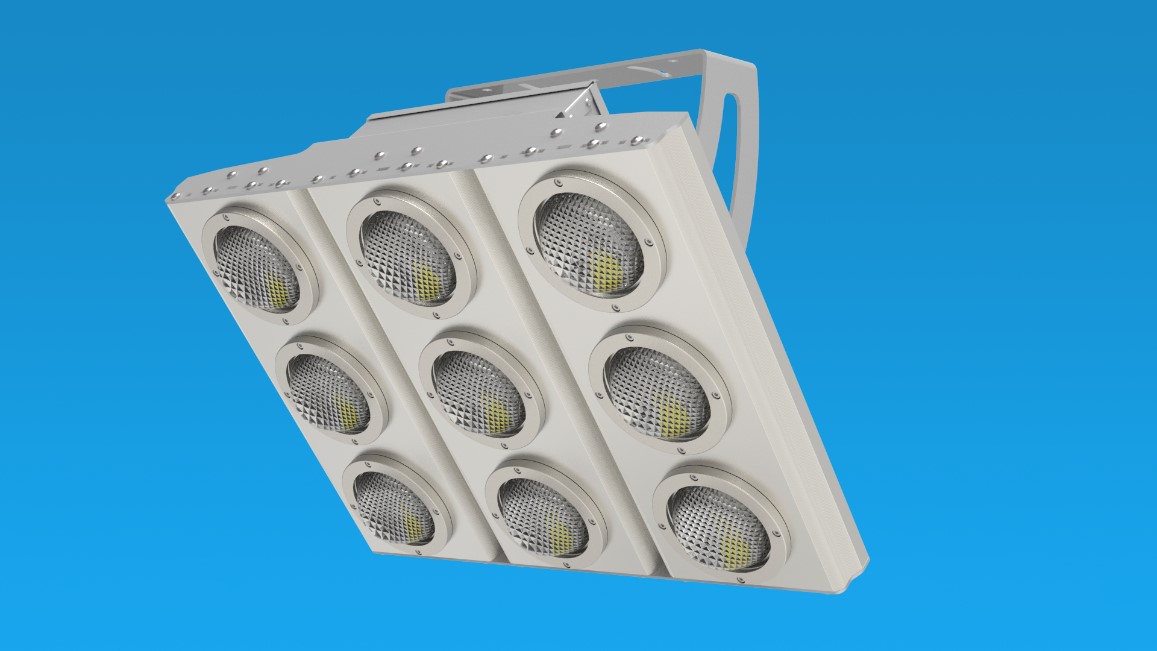

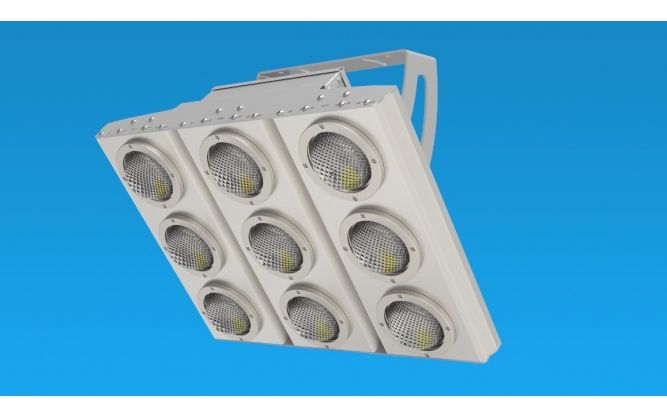

MS Series

Description:

MS is the most reliable and efficient energy saving fixture used to light large open areas from the mast supports characterized by the lowest cost of ownership on the market in its class. Thanks to the wide range of optics, MS luminaires ensure high-quality lighting from the height of up to 50 metres with the record-breaking technological reserve enabling the longest guaranteed service life.

  • image description
    •
  • image description
    •
  • image description
    •
  • image description
    •

Near-by territories / Enterprise sites / Road junctions / Car parking

Lighting details:

Colour temperature image description
4,000/5,000 K
Colour rendering index Ra image description
>70
Light flux angle of expansion image description
45°, 90°, 130/30
Light output image description
from 140 lm/W
Colour temperature (K) and colour rendering index (Ra) may be changed upon customer’s request.

Technical data:

MS fixture useful life:image description
L70 at ta=+25°C > 90,000 hours
Operating temperature range
from -45 to +50⁰C
Protection class image description
IP66
Power factor image description
>0,95

Electrical data:

image descriptionLine voltage image description
230 V
image descriptionPower line frequency
50 Hz
image descriptionElectric shock protection class
I

Physical characteristics:

Housing material image description
Anodized aluminum
Optics material
Borosilicate glass
Fasteners
Universal mounting bracket
Model Number of modules,
pcs.		 Light flux,
lm		 Power consumption,
W		 Dimensions, mm
L x W x H		 Weight, kg
MS-480 6 60000 430 465 õ 375 õ 183 19
MS-600 9 78500 535 465 õ 561 õ 204 23
MS-6AB368-60/23M229-740-DS-B 6 36800 229 462 õ 375 õ 176 16
MS-12AB101-60/23L700-740-B 12 101000 700 600 x 630 x 350 25,9
