Description:

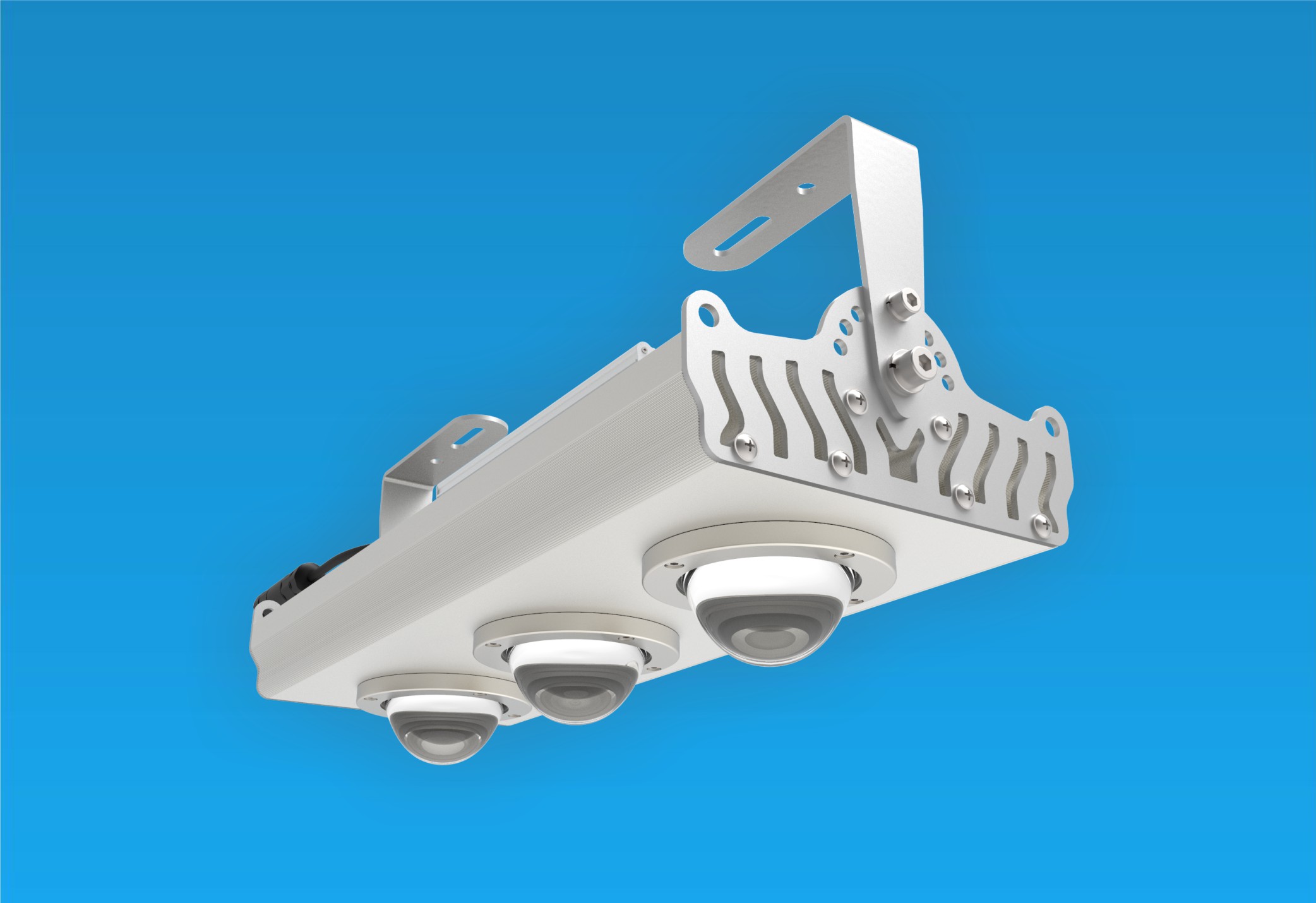

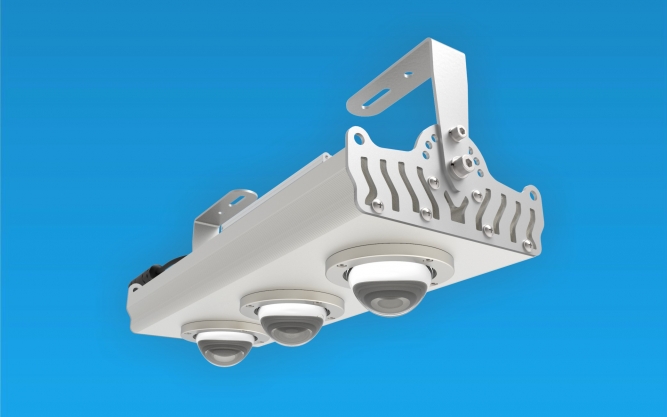

HBL is a reliable and efficient energy saving lighting fixture for production, storage premises and outdoor areas characterized by the lowest cost of ownership on the market in its class. Thanks to the wide range of optics, HBL lighting units ensure high-quality lighting from both low and high levels of suspension with the record-breaking technological reserve enabling the longest guaranteed service life.

Wide range of models from 40 to 460 W.

Stadiums / Squares / Quarries / Transport

Lighting details:

Colour temperature: 4000/5000 К

Colour rendering index Ra: >70

Light flux angle of expansion: 45°, 60°, 90°, 82/28

Light output: from 140 lm/W

Colour temperature (K) and colour rendering index (Ra) may be changed upon customer’s request.

Technical data:

Lamp useful life:: L70 at ta=+25°C 72,000 hours

Operating temperature range: from -45 to +60⁰

Protection class: IP66

Power factor: >0,95

Electrical data:

Line voltage: 90V -305V AC / 127V - 250V DC

Power line frequency: 50 Hz

Electric shock protection class: I

Physical characteristics:

Housing material: Anodized aluminium

Optics material: Borosilicate glass

Fasteners: turning mounting bracket, chain

Model	Number of modules, pcs	Light flux, lm	Power consumption, W	Dimensions, mm, L x W x H	Weight, kg
HBL-1AB66-46L47-740-DS	1	6 600	47	215 х 189 х 153	3,3
HBL-1AB89-46L68-740-DS	1	8 900	68	215 х 189 х 153	3,7
HBL-2AB132-46L92-740-DS	2	13 200	92	315 х 189 х 153	4,9
HBL-2AB180-46L133-740-DS	2	18 000	133	415 х 189 х 153	5,5
HBL-3AB251-46L182-740-DS	3	25 100	182	540 х 189 х 153	7
HBL-4AB308-46L217-740-DS	4	30 800	217	615 х 189 х 153	8
HBL-4AB360-46L267-740-DS	4	36 000	267	415 х 378 х 164	11
HBL-6AB504-46L364-740-DS	6	50 400	364	540 х 378 х 164	13,9
HBL-8AB617-46L435-740-DS	8	61 700	435	615 х 378 х 164	16
HBL-1AB68-50L47-740-DS	1	6 800	47	215 х 189 х 149	3,3
HBL-1AB92-50L68-740-DS	1	9 200	68	215 х 189 х 149	3,7
HBL-2AB137-50L92-740-DS	2	13 700	92	315 х 189 х 149	4,9
HBL-2AB186-50L133-740-DS	2	18 600	133	415 х 189 х 149	5,5
HBL-3AB260-50L182-740-DS	3	26 000	182	540 х 189 х 149	7
HBL-4AB319-50L217-740-DS	4	31 900	217	615 х 189 х 149	8
HBL-4AB373-50L267-740-DS	4	37 300	267	415 х 378 х 160	11
HBL-6AB521-50L364-740-DS	6	52 100	364	540 х 378 х 160	13,9
HBL-8AB638-50L435-740-DS	8	63 800	435	615 х 378 х 160	16
HBL-1AB69-80L47-740-DS	1	6 900	47	215 х 189 х 140	3,3
HBL-1AB93-80L68-740-DS	1	9 300	68	215 х 189 х 140	3,7
HBL-2AB138-80L92-740-DS	2	13 800	92	315 х 189 х 140	4,9
HBL-2AB188-80L133-740-DS	2	18 800	133	415 х 189 х 140	5,5
HBL-3AB263-80L182-740-DS	3	26 300	182	540 х 189 х 140	7
HBL-4AB322-80L217-740-DS	4	32 200	217	615 х 189 х 140	8
HBL-4AB377-80L267-740-DS	4	37 700	267	415 х 378 х 151	11
HBL-6AB527-80L364-740-DS	6	52 700	364	540 х 378 х 151	13,9
HBL-8AB645-80L435-740-DS	8	64 500	435	615 х 378 х 151	16
HBL-1AB62-82/28M39-740-DS-B	1	6 200	39	192 х 187 х 144	2,4
HBL-3AB202-82/28M127-740-DS-B	3	20 200	127	494 х 187 х 144	5,6
HBL-4AB246-82/28M152-740-DS-B	4	24 600	152	614 х 187 х 146,5	6,9
HBL-2AB123-82/28M76-740-DS-B	2	12 300	76	312 х 187 х 144	3,8
HBL-2AB90-82/28M55-740-DS-B	2	9 000	55	262 х 187 х 144	3,4
HBL-2AB143-82/28L91-740-DS-B	2	14 300	91	262 х 187 х 144	3,4
HBL-3AB184-82/28M114-740-DS-B	3	18 400	114	494 х 187 х 144	5,6
HBL-6AB368-50M229-740-DS-B	6	36 800	229	494 х 378 х 144	10,7
HBL-6AB368-82/28M229-740-DS-B	6	36 800	229	494 х 378 х 144	11,2
HBL-6AB427-50L273-740-DS-B	6	42 700	273	364 х 378 х 144	8,9
HBL-2AB103-50M63-740-DS-C1	2	10 300	63	232 х 187 х 144	3
HBL-2AB100-80M60-740-DS-C1	2	10 000	60	232 х 187 х 144	3
HBL-2AB143-50L91-740-DS-C1	2	14 300	91	262 х 187 х 144	3,25
HBL-3AB200-80M123-740-DS-C1	3	20 000	123	494 х 187 х 144	5,35
HBL-3AB202-50M127-740-DS-C1	3	20 200	127	494 х 187 х 144	5,35
HBL-3AB306-80L213-740-DS-C1	3	30 600	213	614 х 187 х 146,5	6,4
HBL-3AB200-80M123-740-DS-B	3	20 000	123	494 х 187 х 144	5,35
HBL-3AB306-80L213-740-DS-B	3	30 600	213	614 х 187 х 146,5	6,4
HB-3AB190-46M123-740-DS-B	3	19 000	123	414 x 140 x 162	5,8
HBL-3AB201-46M132-740-DS-B	3	20 100	132	494 х 187 х 144	5,35
HBL-2AB90-50M55-740-DS-B	2	9 000	55	232 х 187 х 144	3
HBL-6AB427-82/28L273-740-DS-B	6	42 700	273	414 х 378 х 144	10
HBL-2AB143-82/28L91-740-DS-B	2	14 300	91	262 х 187 х 144	3,39
HBL-2AB141-80M88-740-DS-C1	2	14 100	88	312 х 187 х 144	3,6
HBL-8AB507-50M315-740-DS-B	8	50 700	315	614 х 378 х 146,5	13,15
HBL-3AB301-50L213-740-DS-C1	3	30 100	213	614 х 187 х 146,5	6,4
HBL-1AB63-80M39-740-DS-C1	1	6 300	39	192 х 187 х 144	2,2
HBL-6AB356-46M229-740-DS	6	35 600	229	494 х 378 х 144	10,65
HBL-3AB184-82/28M114-740-DS	3	18 400	114	494 х 187 х 144	5,59
HBL-3AB220-82/28L141-740-DS-B	3	22 000	141	412 х 187 х 144	5
HBL-6AB451-50M289-740-DS-B	6	45 100	289	614 х 378 х 146,5	12,5
HBL-2AB111-50L69-740-DS-H	2	11 100	69	232 х 187 х 144	3
HBL-2AB113-80L69-740-DS-H	2	11 300	69	232 х 187 х 144	3
HBL-4AB325-50L215-740-DS-B	4	32 500	215	534 х 187 х 146,5	6,2
HBL-4AB325-80L209-740-DS-B	4	32 500	209	534 х 187 х 146,5	6,2
HBL-4AB325-80L209-740-DS-B	4	31 900	209	534 х 187 х 146,5	6,2
HBL-4AB368-80S37M255-740-DS-B	4	36 800	255	614 х 187 х 147	7
HBL-1AB74-50M48-740-DS-C1	1	7400	48	192 х 187 х 144	2,2
