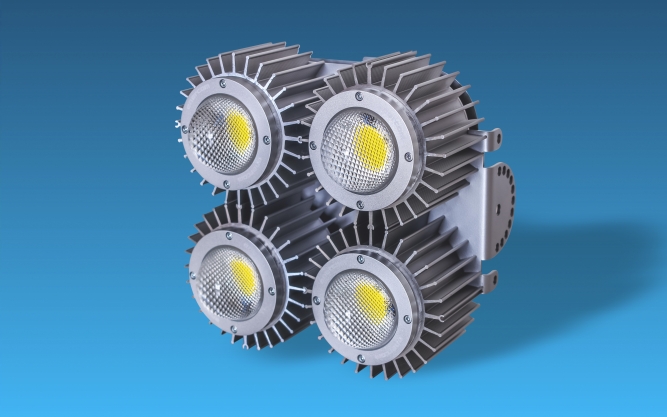

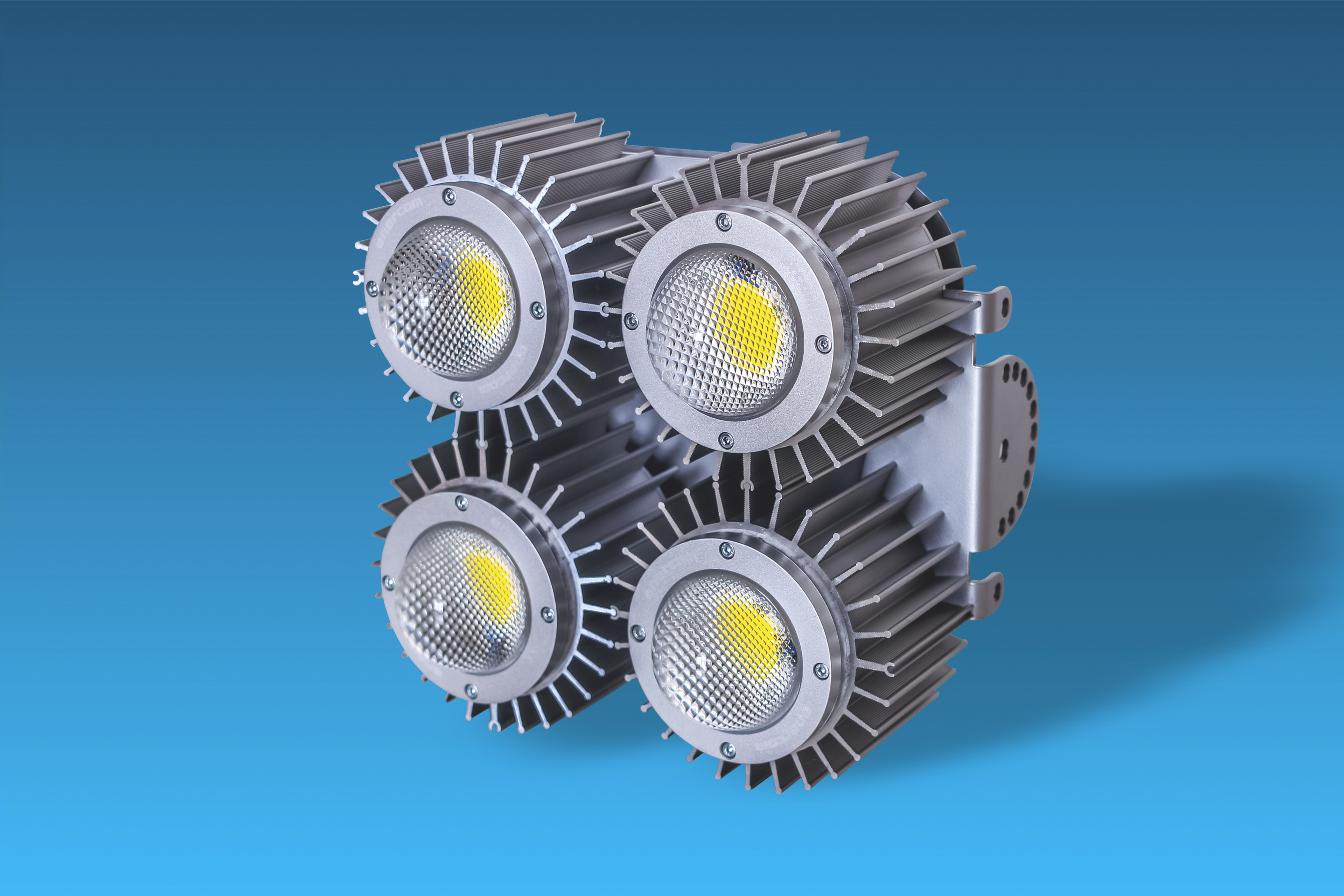

HB Series

Description:

HB is the most innovative, reliable, beautiful and expensive-looking lighting fixture in its class.

Wide range of models from 100 to 480 W. image description

  • image description
    •

Manufacturing plants

Lighting details:

Colour temperature image description
4,000/5,000 K
Colour rendering index Ra image description
>70
Light flux angle of expansion image description
45°,60°,90°,120°
Light output image description
from 140 lm/W
Colour temperature (K) and colour rendering index (Ra) may be changed upon customer’s request.

Technical data:

LED fixture useful life :image description
L70 = 70,000 hours
Operating temperature range
from -45 to +70⁰
Protection class image description
IP65
Power factor image description
>0,95

Electrical data:

image descriptionLine voltage image description
230 V
image descriptionPower line frequency
47-63 Hz
image descriptionElectric shock protection class
I

Physical characteristics:

Housing material image description
anodized aluminum
Optics material
borosilicate glass
Fasteners
turning mounting bracket, chain
External easy-to-replace driver
Model Number of
modules		 Light flux,
lm		 Power consumption,
W		 Dimensions, mm
L x W x H		 Weight, kg
HB-4AB207-46L138-740-DS 4 20700 138 285 x 277 x 165 7,06
HB-2AB126-46L86-740-DS 2 12600 86 310 x 140 x 145 3,6
HB-4AB266-46L183-740-DS 4 26600 183 285 x 277 x 165 7,14
HB-6AB400-46L276-740-DS 6 40000 276 422 x 277 x 163 11,60
HB-8AB533-46L366-740-DS 8 53300 366 560 x 277 x 165 14,95
HB-4AB308-46L217-740-DS 4 30800 217 285 x 277 x 165 7,14
HB-8AB617-46L435-740-DS 8 61700 435 560 x 277 x 165 15,15
HB-4AB214-50L138-740-DS 4 21400 138 285 x 277 x 165 7,06
HB-2AB131-50L86-740-DS 2 13100 86 310 x 140 x 145 3,6
HB-4AB275-50L183-740-DS 4 27500 183 285 x 277 x 165 7,14
HB-6AB414-50L276-740-DS 6 41400 276 422 x 277 x 163 11,60
HB-8AB551-50L366-740-DS 8 55100 366 560 x 277 x 165 14,95
HB-4AB319-50L217-740-DS 4 31900 217 285 x 277 x 165 7,14
HB-8AB638-50L435-740-DS 8 63800 435 560 x 277 x 165 15,15
HB-4AB217-80L138-740-DS 4 21700 138 285 x 277 x 165 7,06
HB-2AB132-80L86-740-DS 2 13200 86 310 x 140 x 145 3,6
HB-4AB278-80L183-740-DS 4 27800 183 285 x 277 x 165 7,14
HB-6AB418-80L276-740-DS 6 41800 276 422 x 277 x 163 11,60
HB-8AB557-80L366-740-DS 8 55700 366 560 x 277 x 165 14,95
HB-4AB322-80L217-740-DS 4 32200 217 285 x 277 x 165 7,14
HB-8AB645-80L435-740-DS 8 64500 435 560 x 277 x 165 15,15
HB-4AB319-50L217-740-DS 4 31900 217 285 x 277 x 165 7,14
HB-3AB240-50M158-740-DS-B 3 24000 158 414 x 140 x 185 6,6
HB-4AB301-50M191-740-DS-C1 4 30100 191 285 x 278 x 187 8,2
HB-6AB374-80H226-740-DS-B 6 37400 226 422 x 278 x 211 15,2
HB-8AB507-50H312-740-DS-C1 7 50700 226 560 x 278 x 211 19,3
HB-2AB176-80M117-740-DS-B 2 17600 117 310 x 141 x 188 5
HB-2AB173-50M117-740-DS-Ñ1 2 17300 117 310 x 141 x 188 5
HB-3AB214-50L136-740-DS-C1 3 21400 136 414 x 140 x 162 5,8
HB-3AB200-80M123-740-DS-H 3 20000 123 414 x 140 x 162 5,8
HB-3AB217-80L136-740-DS-B 3 21700 136 414 x 140 x 162 5,8
HB-8AB520-46H337-740-DS-C1 8 52000 337 560 x 278 x 211 19,6
HB-2AB176-80M117-740-DS-C1 2 17600 117 310 x 141 x 188 5
HB-8AB535-46M350-740-DS-C1 8 53500 350 560 x 278 x 188 16,3
HB-8AB475-46H300-740-DS-C1 8 47500 300 560 x 278 x 211 19,3
HB-6AB415-50M264-740-DS-C1 6 41500 264 422 x 278 x 185 12,7
HB-6AB439-50M280-740-DS-C1 6 43900 280 422 x 278 x 188 12,8
