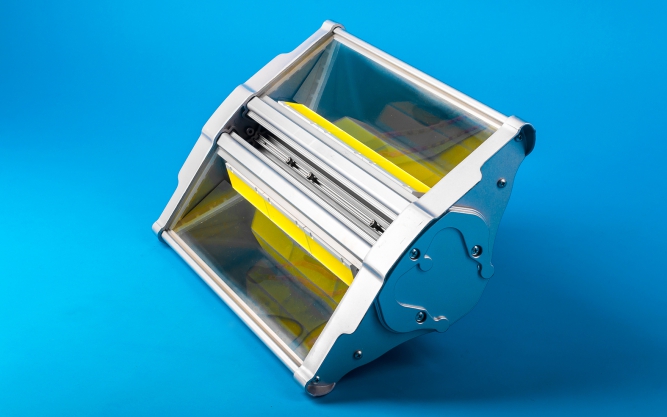

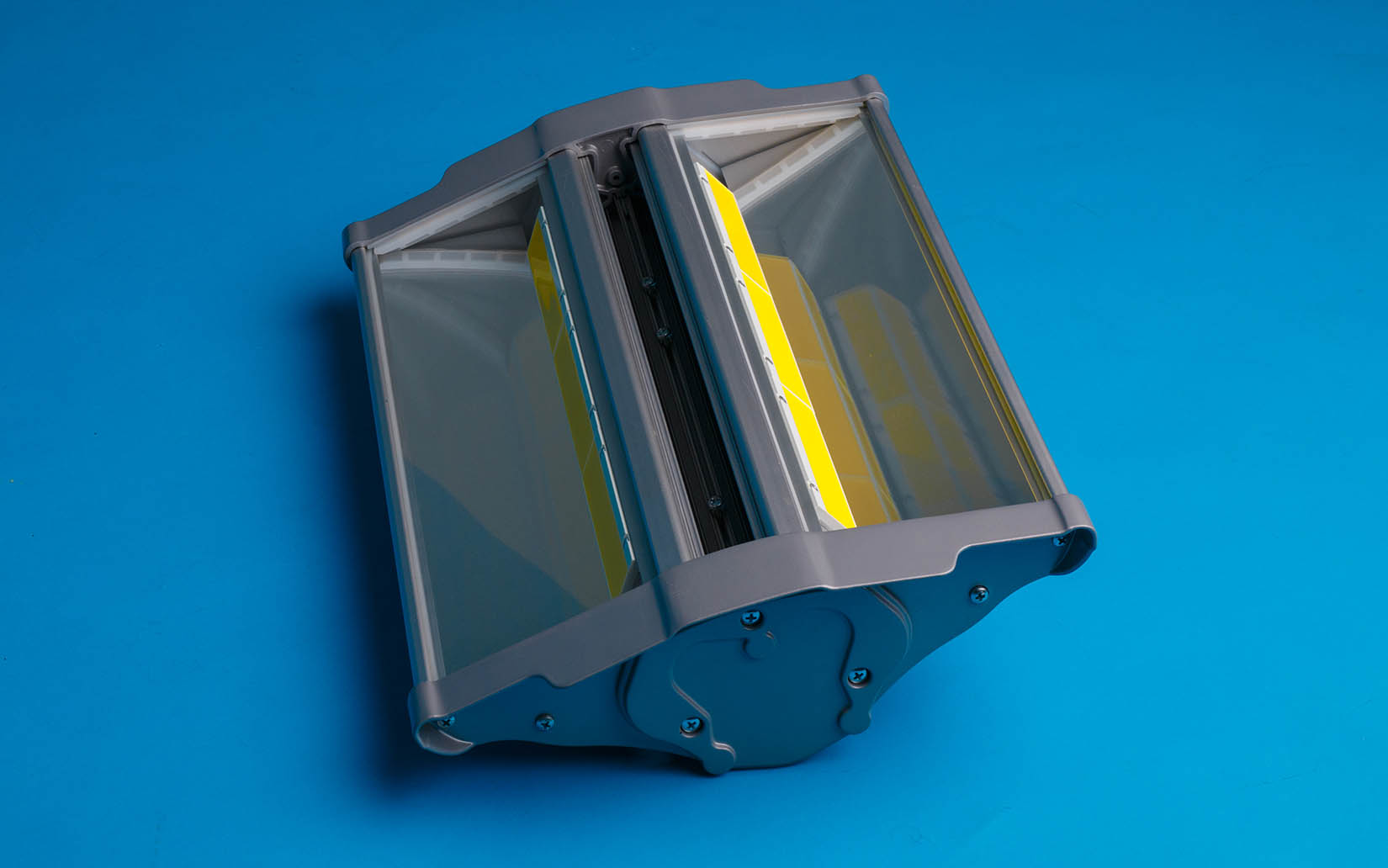

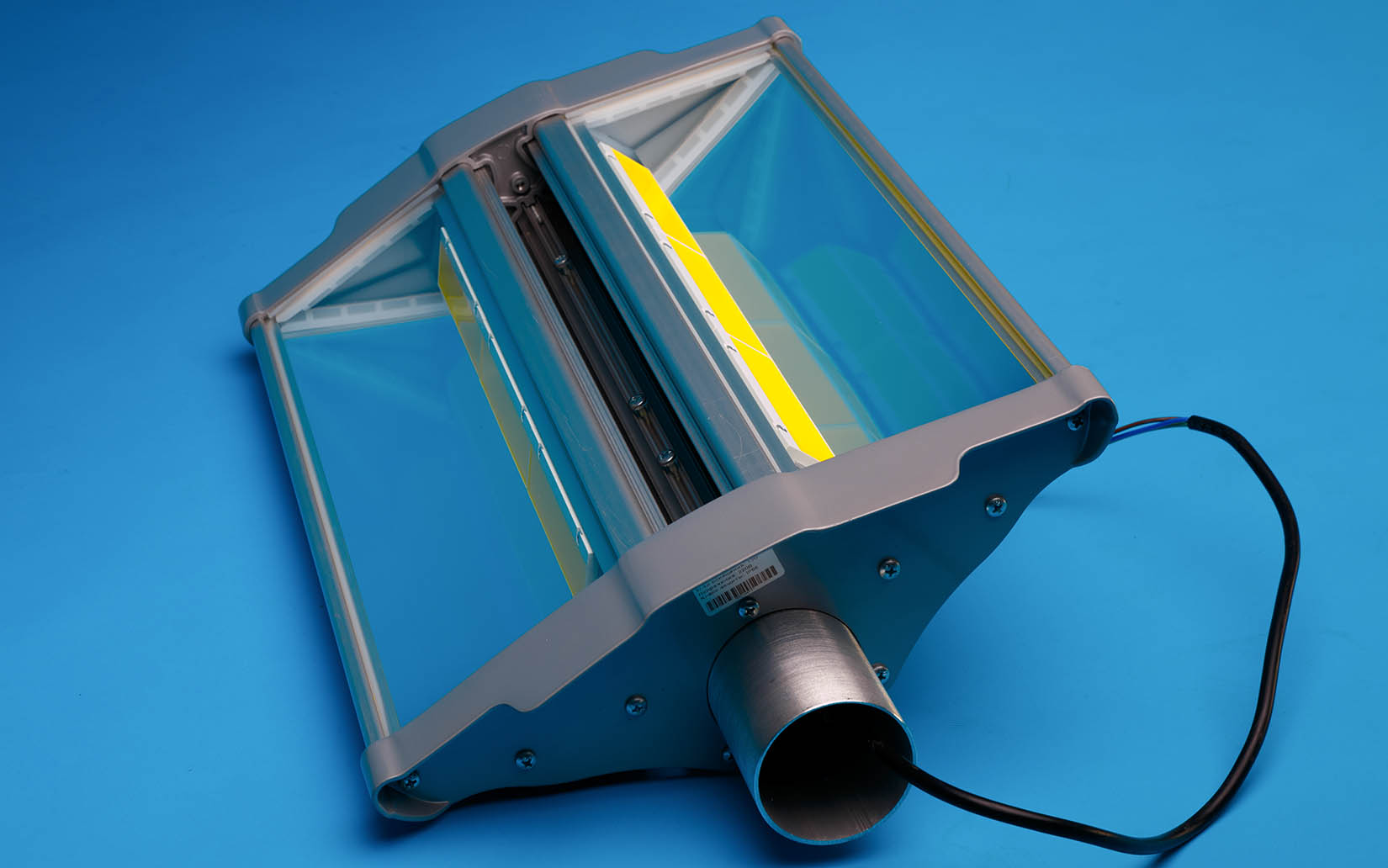

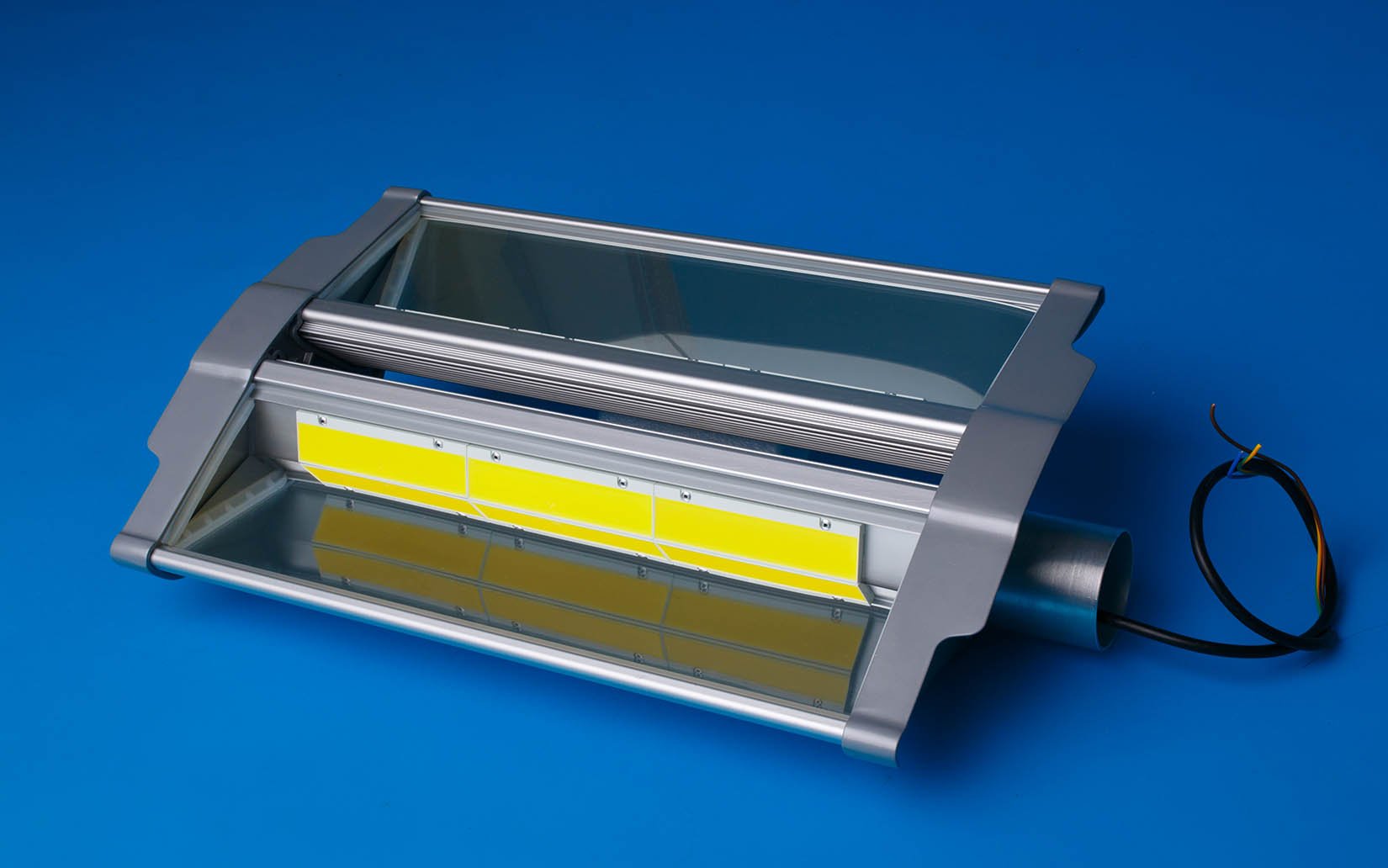

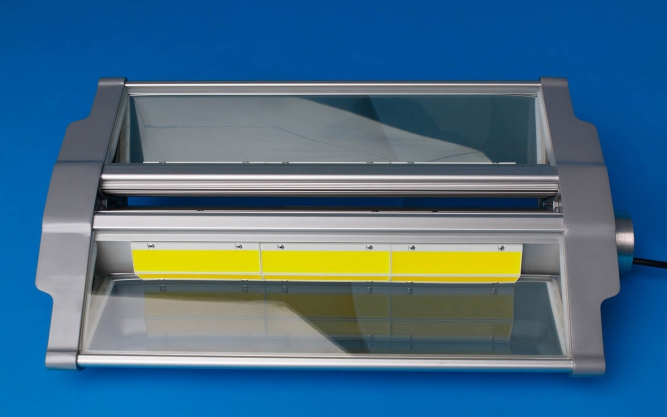

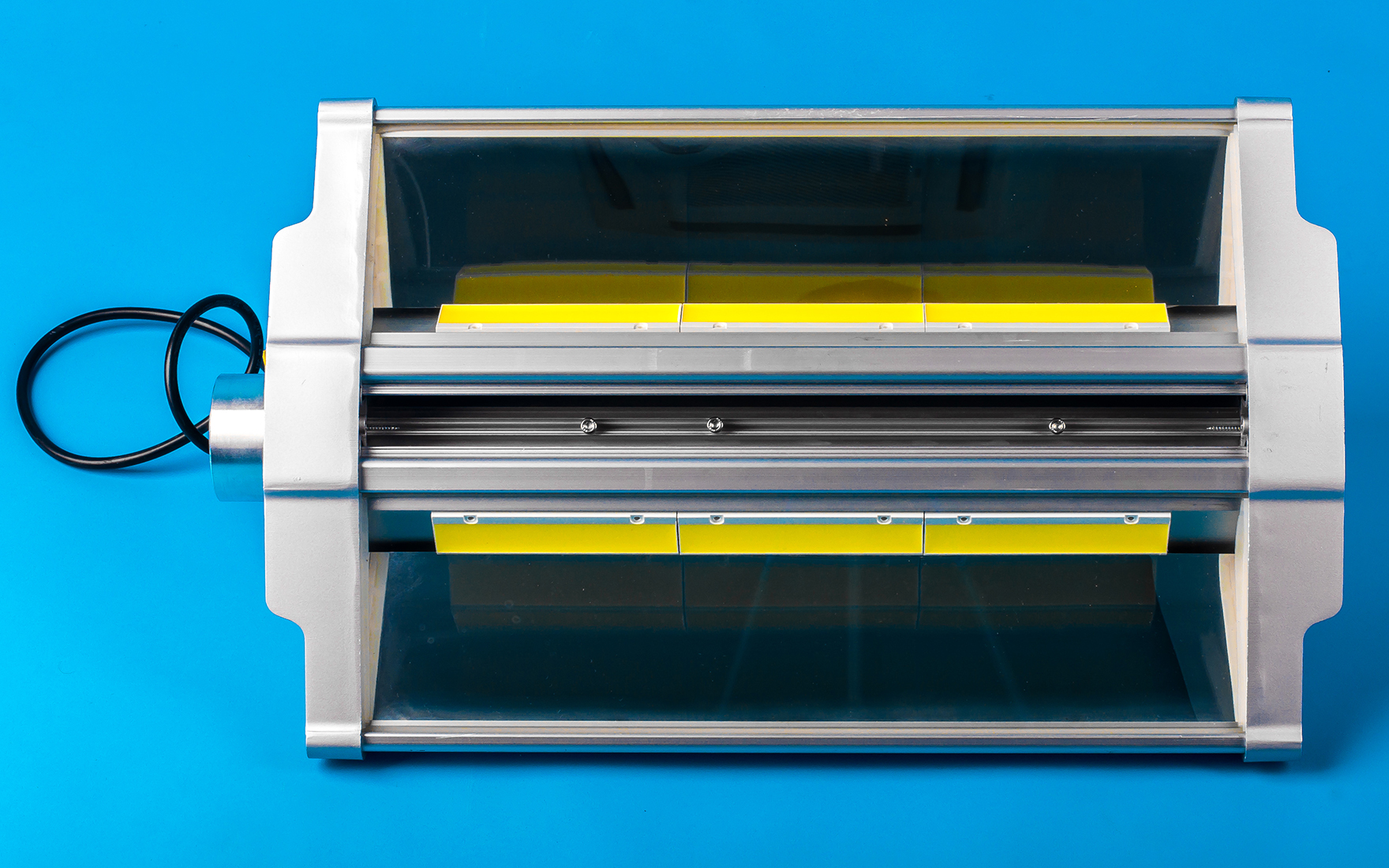

NR-SLW series
Description:
NR-SLW is a nice-looking and modern energy-saving light for street and city lighting, traffic lighting and near-by territories. It emits even pouring light. The power can be adjusted to meet real outdoor lighting regulations. It is a direct replacement of gas-discharge lights, saving up to 60 % of energy.
SLW-lights have the longest service life outdoors (up to 17 years).
A wide range of models with the power from 45 to 255 W.
Street lighting / Mast lighting
Lighting features:
- Colour temperature
- 4000/5000 Ê
- Colour rendering index Ra
- >70
- Light flux opening angle
- 150°
- Light output
- up to 117 lm/W
Colour temperature (K) and CRI can be changed by the customer’s order.
Technical features:
- Useful light period:
- L80 = 50 000 hours / L70 = 90 000 hours
- Working temperatures range
- -40 – +50⁰
- Protection degree
- IP65
- Power index
- >0,95
Electric features:
Mains electricity - 230 W
Supply frequency- 50-60 Hz
Electric current protection- I
Physical features:
- Case material
- anodized aluminum
- Optics material
- hardened glass
- Anchorage
- bracket, inner diameter of the pipe = 64 mm
Replaceable device driver
| Model | Number of modules, item |
Light flux, Lm |
Consumption, W |
Overall dimensions, mm L õ W õ H |
Weight, kg |
|---|---|---|---|---|---|
| NR-SLW-40 | 2 | 4760 / 4960 | 45 | 460 õ 344 õ 131 | 4 |
| NR-SLW-60 | 4 | 7150 / 7450 | 67 | 460 õ 344 õ 131 | 6,6 |
| NR-SLW-80 | 4 | 9500 / 9900 | 89 | 460 õ 344 õ 131 | 6,6 |
| NR-SLW-120 | 6 | 14300 / 14900 | 128 | 460 õ 344 õ 131 | 9,5 |
| NR-SLW-160 | 8 | 19100 / 19900 | 170 | 710 õ 344 õ 131 | 11,8 |
| NR-SLW-200 | 10 | 23800 / 24800 | 213 | 835 õ 344 õ 131 | 13 |
| NR-SLW-240 | 12 | 28600 / 29800 | 255 | 960 õ 344 õ 131 | 15 |
