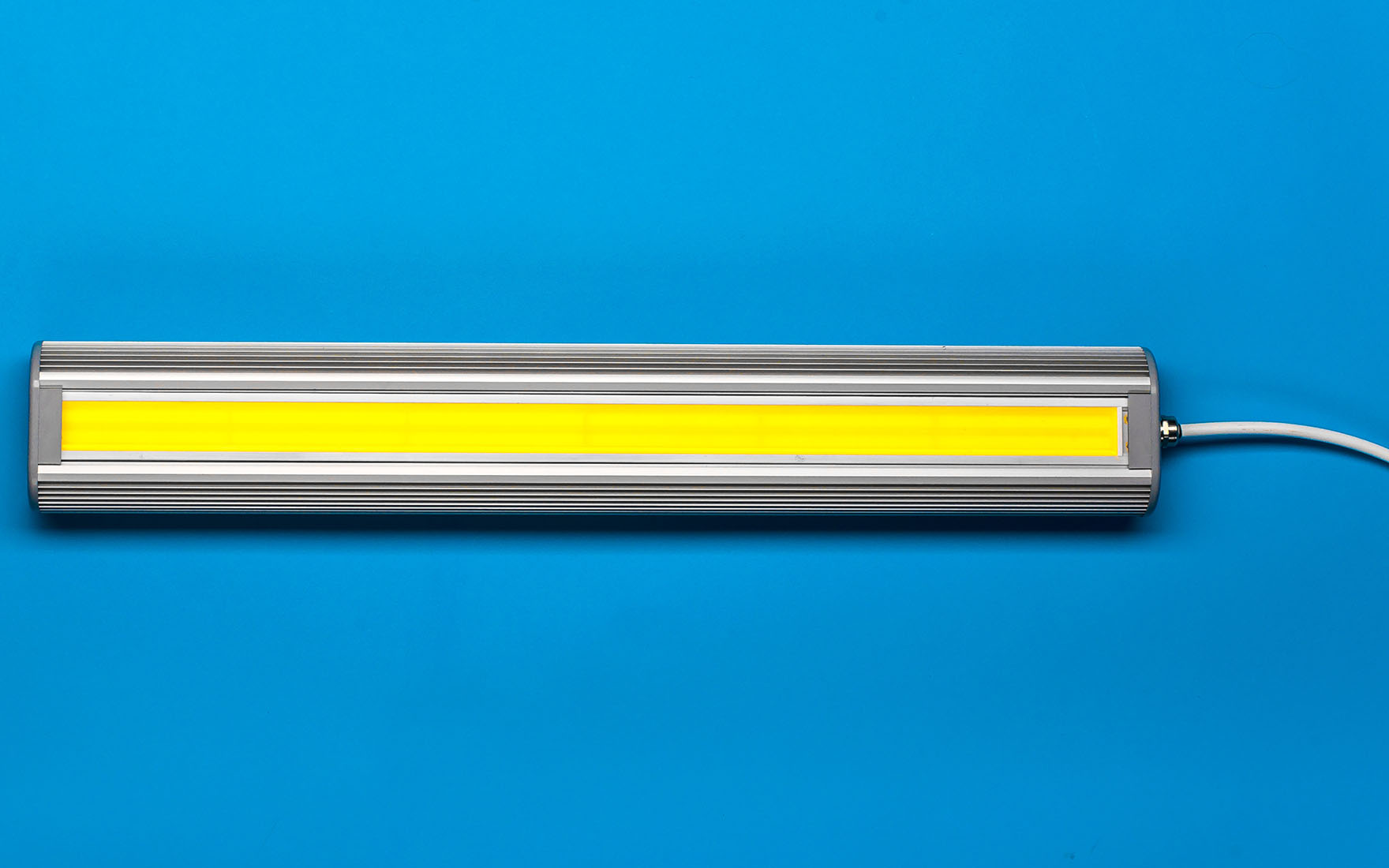

NR-MLRP series

Description:

MR-RP lights are an example of elegant and modern design to ennoble and improve any interior. Their convenient extended form is suitable for ‘line’ lighting, for example in a passage or corridor. It is a direct replacement of standard luminescent ceiling form-factor lights, saving up to 60 % of energy. The light flux can be adjusted.

ML-RP CLS lights have the longest service life and the best efficiency.

A wide range of models with the power from 21 to 52 W.image description

  • image description
  • image description
  • image description
  • image description
  • image description

Corridors / Offices / Spaces between the racks / Shopping areas / Manufacturing facilities

Lighting features:

Colour temperature image description
4000/5000 К
Colour rendering index Ra image description
>70

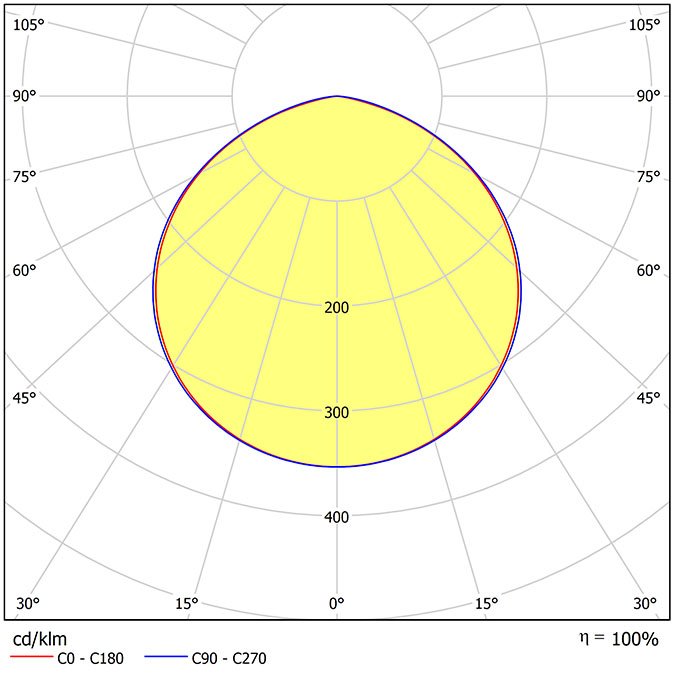

Light flux opening angle image description
120°
Light output image description
up to 115 lm/W
Colour temperature (K) and CRI can be changed by the customer’s order.

Technical features:

Useful light period: image description
L80 = 50 000 hours / L70 = 70 000 hours
Working temperatures range
-40 – +50°
Protection degree image description
IP65
Power index image description
>0,95

Electric features:

image descriptionMains electricity image description
230 W
image descriptionSupply frequency
50-60 Hz
image descriptionElectric current protection
I

Physical features:

Case material image description
anodized aluminum
Optics material image description
transparent polycarbonate (thickness = 1.5 mm)
Anchorage
stainless steel mounting bracket
Replaceable device driver
Argos-Trade
Model Number of modules,
item
Light flux,
Lm
Consumption,
W
Overall dimensions,
mm
L х W х H
Weight, kg
NR-ML50RP-18 1 2200 / 2300 21 510 х 77 х 49 1,4
NR-ML50RP-24 1 2875 / 3000 27 510 х 77 х 49 1,4
NR-ML100RP-36 2 4400 / 4600 40 1010 x 77 x 49 2
NR-ML100RP-48 2 5750 / 6000 52 1010 х 77 х 49 2
