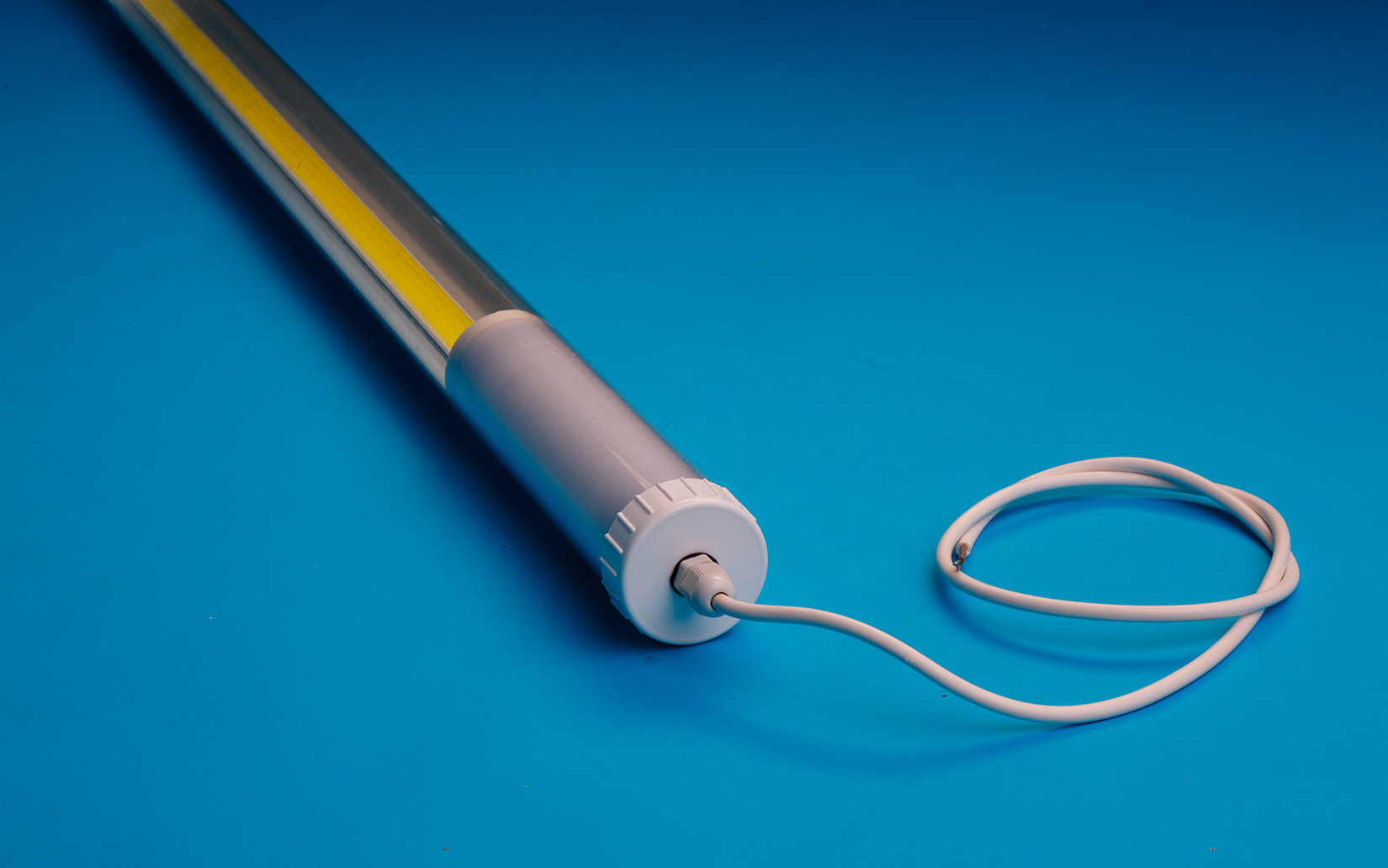

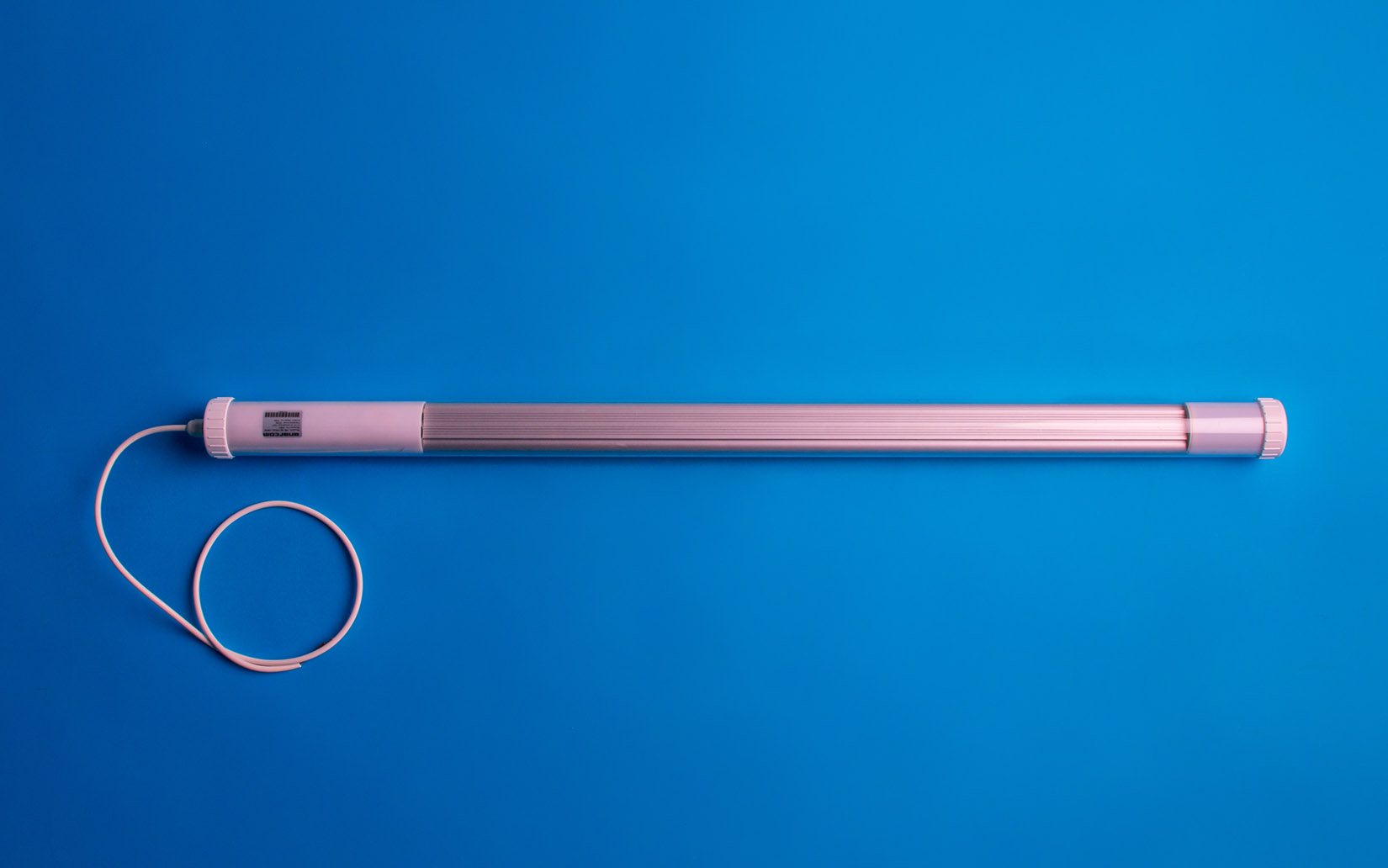

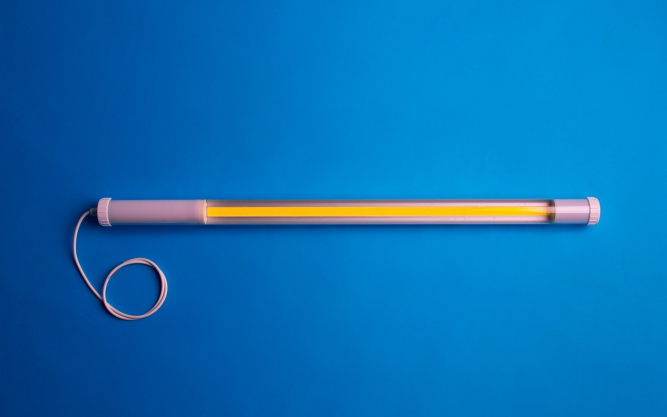

NR-MLJS series

Description:

Our new protected NR-MLJS lights are specially designed for facilities with high humidity and aggressive external environment.

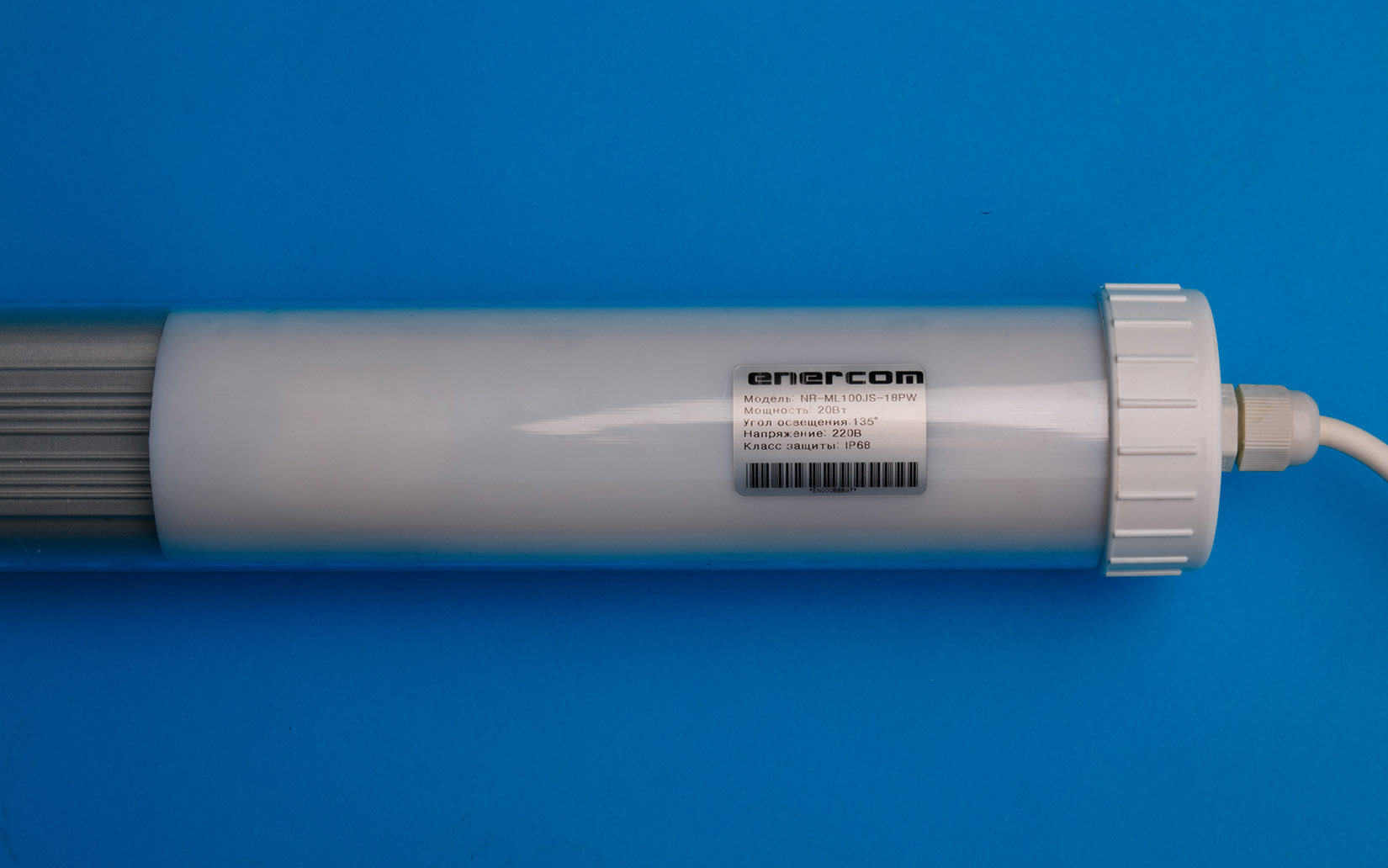

The case is made of super hard polycarbonate with guarantee warranty up to 10 years, the protection degree is IP68. For more protection the driver is installed within a hermetic case.

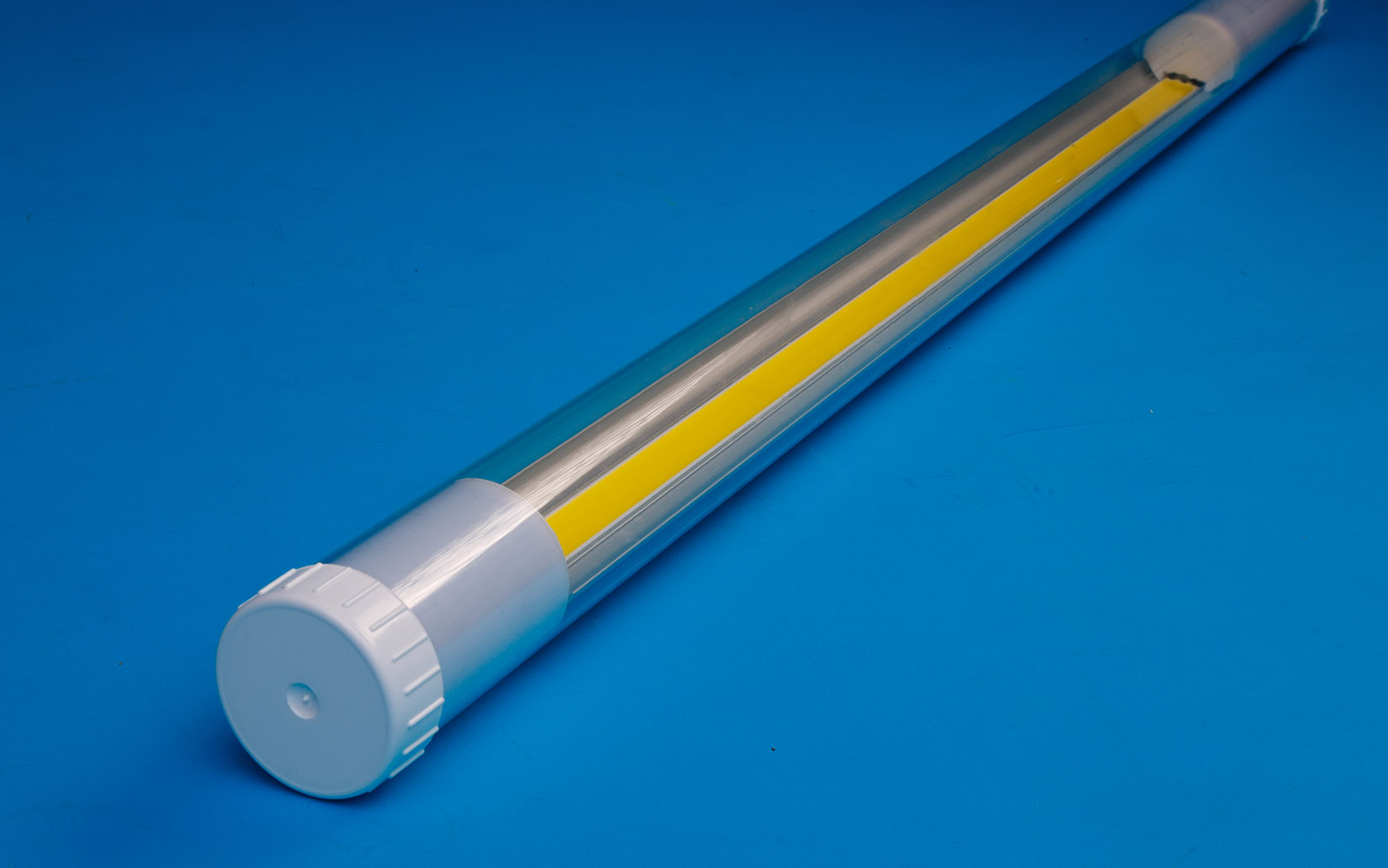

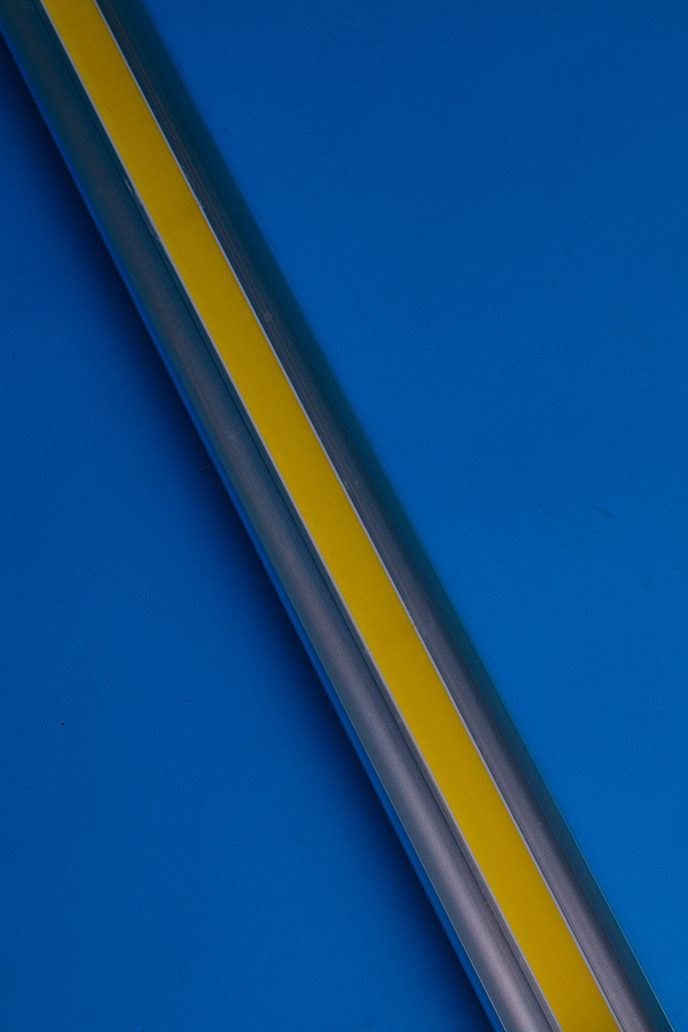

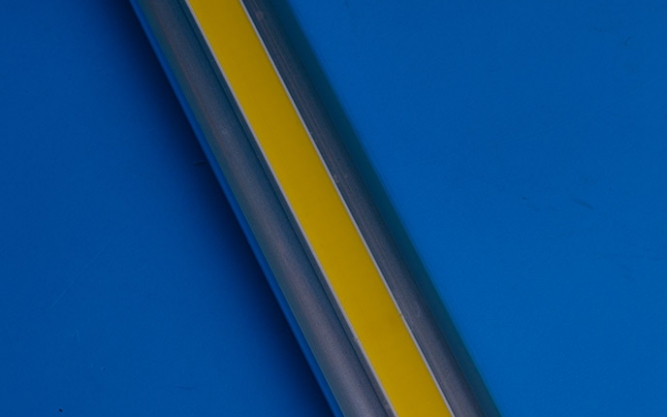

The LED CLS module is fixed on the radiator, which prolongs the service life.

NR-MLJS is a highly reliable solution for chemical, metal and food plants.

  • image description
  • image description
  • image description
  • image description

Animal and poultry farming facilities / Manufacturing facilities / Aggressive environments / Automobile repair shops

Lighting features:

Colour temperature image description
4000/5000 К
Colour rendering index Ra image description
>70

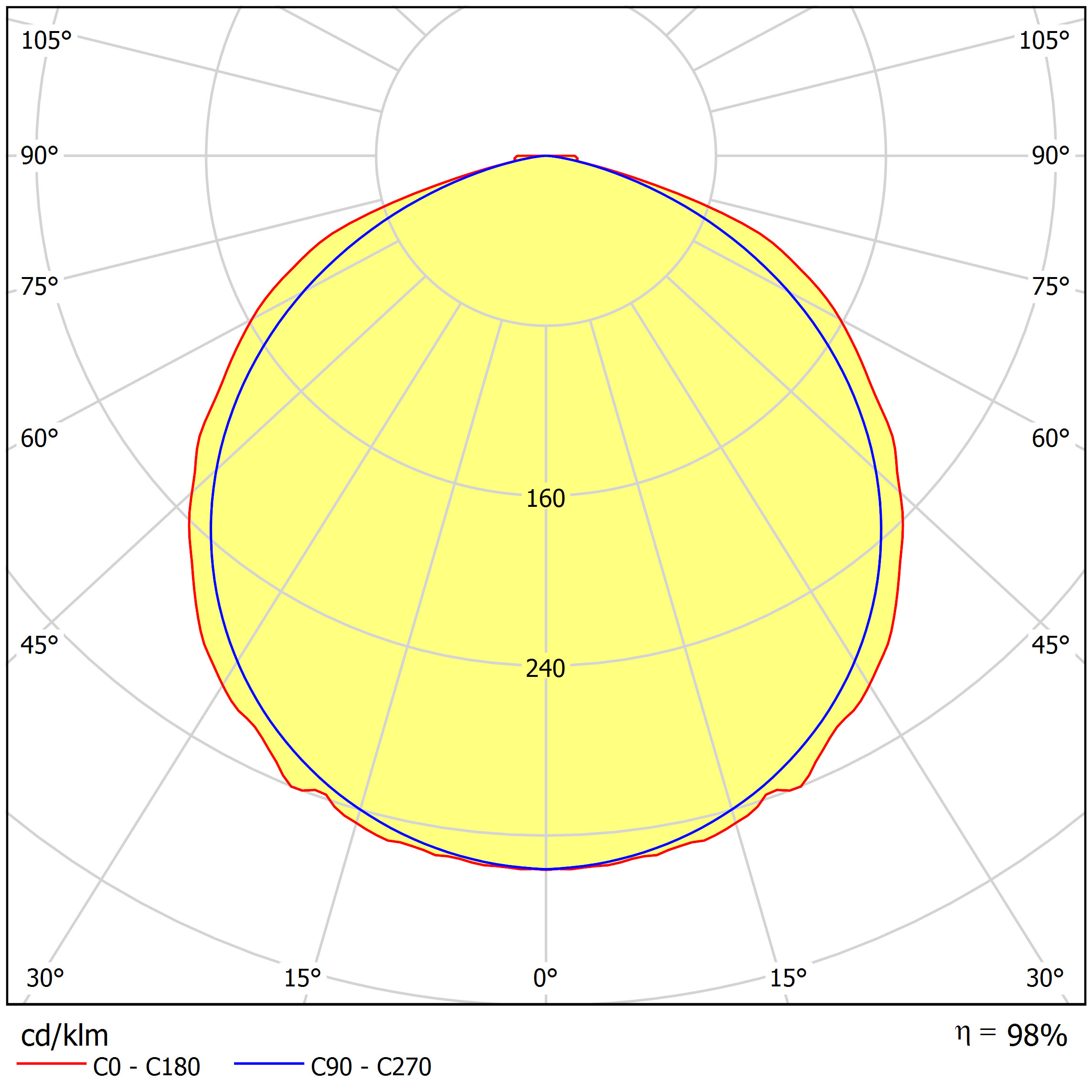

Light flux opening angle image description
135°
Light output image description
up to 115 lm/W
Colour temperature (K) and CRI can be changed by the customer’s order.

Technical features:

Useful light period: image description
L80 = 30 000 часов / L70 = 40 000 часов
Working temperatures range
-40 – +50°
Protection degree image description
IP68
Power index image description
>0,95

Electric features:

image descriptionMains electricity image description
230 W
image descriptionSupply frequency
50-60 Hz
image descriptionElectric current protection
II

Physical features:

Case material image description
optical polycarbonate
Optics material image description
optical polycarbonate
Anchorage
clamp
Replaceable device driver
Argos-Trade
Model Number of modules,
item
Light flux,
Lm
Consumption,
W
Overall dimensions,
mm
L х W х H
Weight, kg
NR-ML100JS-18 1 2350 / 2450 21 1000 х 54 х 54 1,1
NR-ML100JS-24 2 2750 / 2860 27 1000 х 54 х 54 1,1
NR-ML100JS-36 2 3850 / 4000 40 1000 х 54 х 54 1,1
