NR-DL series
Description:
It is a professional built-in ceiling spot light. It is a direct replacement of Down Light MGL lights, saving up to 50 % of energy.
It has a high light efficiency and an increased service life
Showrooms / Shopping areas / Corridors
Lighting features:
- Colour temperature
- 4000/5000 Ê
- Colour rendering index Ra
- >70

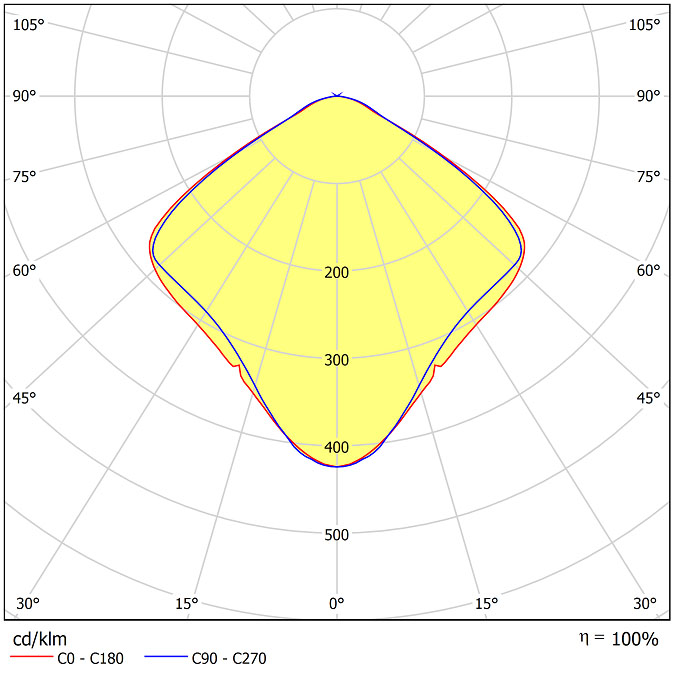

- Light flux opening angle
- 90°
- Light output
- up to 130 lm/W
Colour temperature (K) and CRI can be changed by the customer’s order.
Technical features:
- Useful light period:
- L80 = 30 000 hours / L70 = 40 000 hours
- Working temperatures range/dt>
- -20 – +40⁰
- Protection degree
- IP60
- Power index
- >0,95
Electric features:
Mains electricity - 230 W
Supply frequency- 50-60 Hz
Electric current protection- I
Physical features:
- Case material
- aluminum / plastic
- Optics material
- glass
- Anchorage
- built-in lights

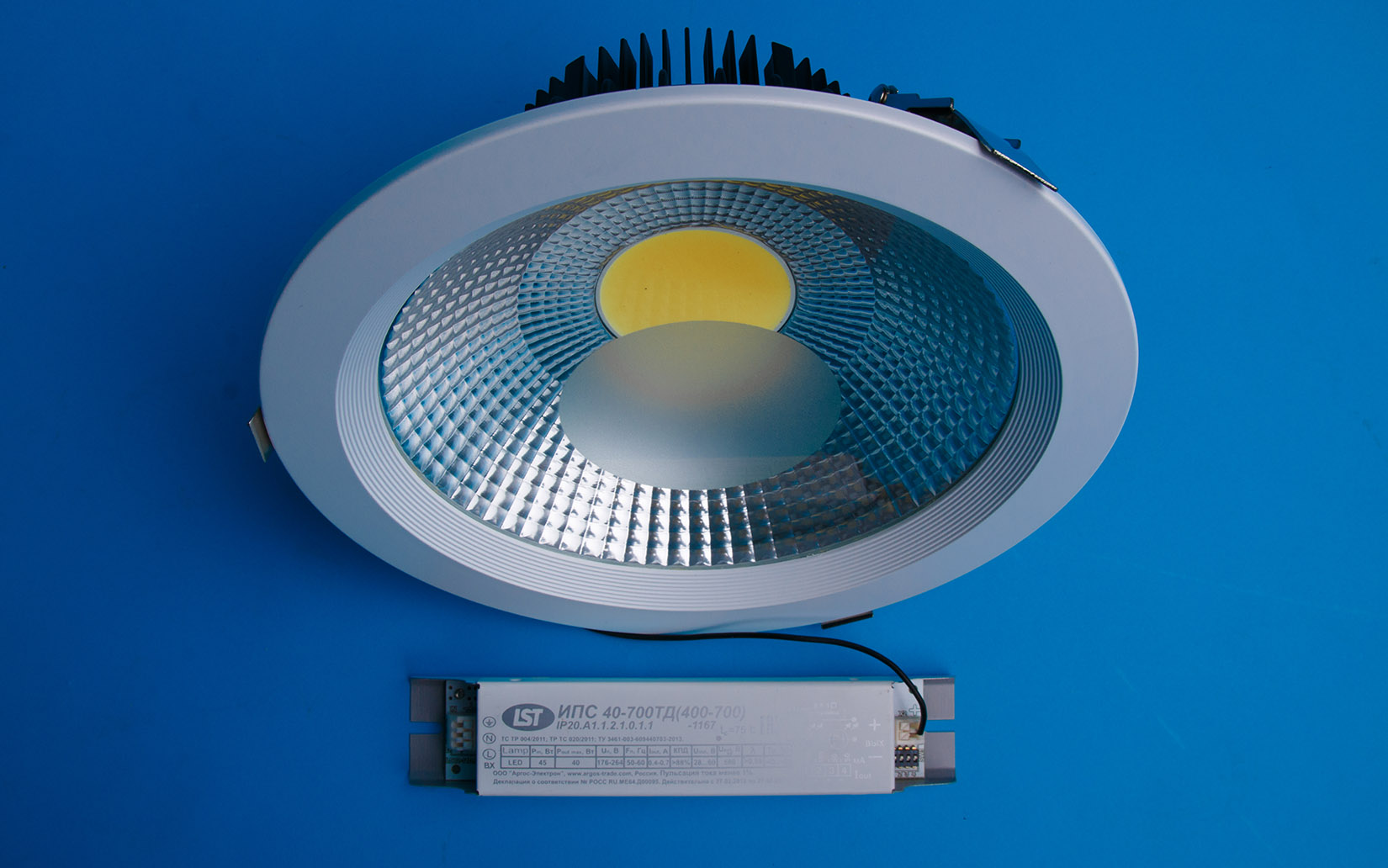

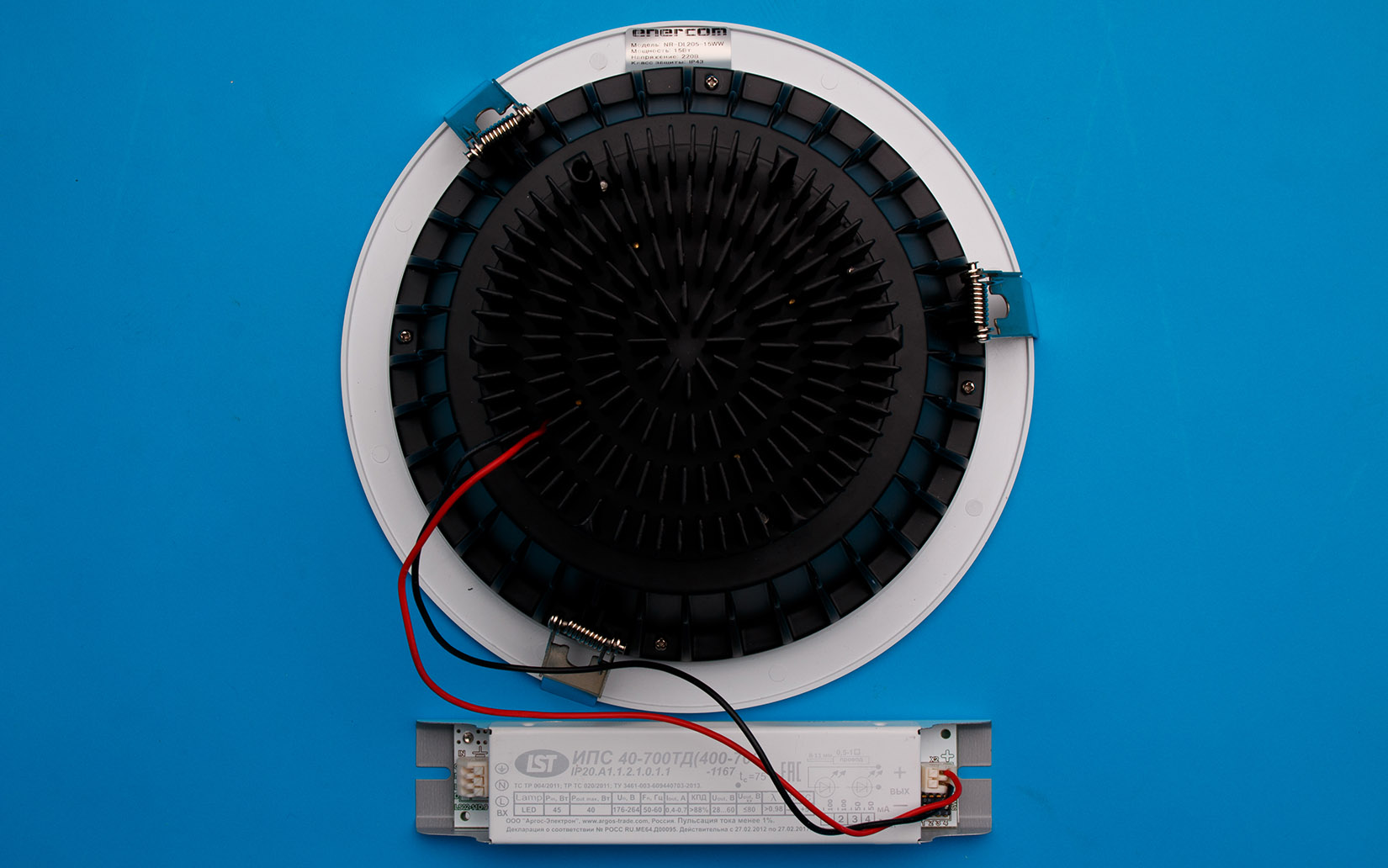

Replaceable device driver
| Model | Number of modules, item |
Light flux, Lm |
Consumption, W |
Overall dimensions, mm L õ W õ H |
Weight, kg |
|---|---|---|---|---|---|
| NR-DL205HS-25 | 1 | 1800-4100 / 1875-4300 | 15-40 | 241 õ 106 | 1,4 |
| NR-DL205HS-60 | 1 | 5000-7200 / 5200-7500 | 40-60 | 266 õ 110 | 1,5 |
